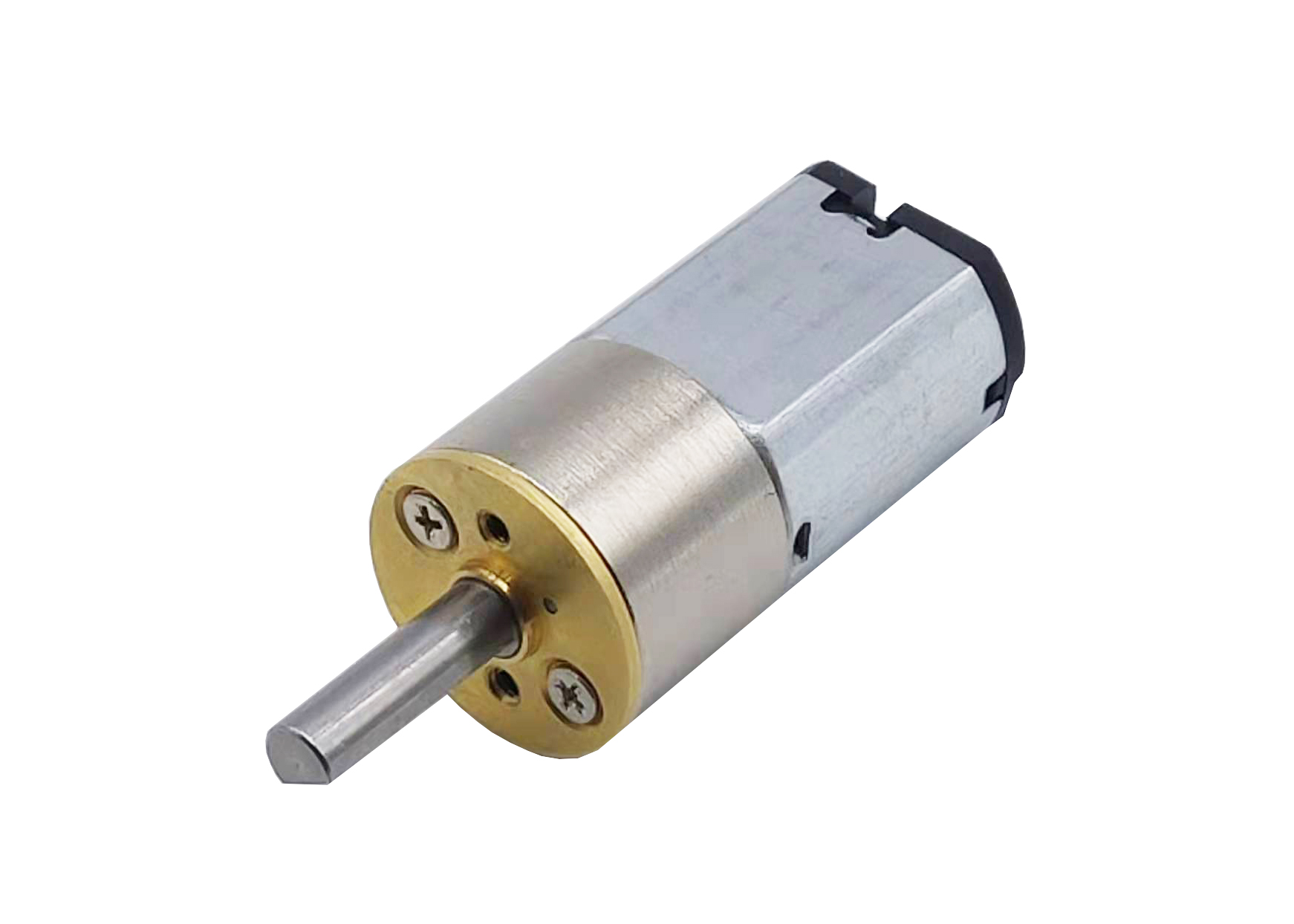

N30 Micro DC Brush Motor With Rotundity Gear Reducer Optional Gear Ratio

Name: N30 Micro DC Brush Motor With Rotundity Gear Reducer Optional Gear Ratio
Brand: VIC-TECH
Price: 3.2 USD

Quality N30 Micro DC Brush Motor With Rotundity Gear Reducer Optional Gear Ratio wholesale

Brand Name : VIC-TECH

Model Number : GM16-030-297G-13D

Certification : RoHS

Place of Origin : Jiangsu, China (Mainland)

MOQ : VIC-TECH

Price : $3.2~$6/unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000000Units per year

Delivery Time : 15-30 work days

Packaging Details : Standard export package, or can be customized

Driving Voltage : 3 V DC

Type : DC Motor

Commutation : Brush

Stall Current(A) : 2.3A

Gear Ratio : 1:10~1:350

No load speed : 50 RPM

Contact Now

N30 Micro DC Brush Motor Horizontal Gear Reducer For Shared Bicycle Smart Lock

N30 DC circular motor, beautiful appearance, small size, light weight, easy installation, long life, low noise technology, high energy saving rate, zero momentum, large torque and high precision.
1: Circular gearbox, equipped with N30 permanent magnet DC motor
2: Meet EU environmental protection standards. Low energy consumption and low noise
3: Can be equipped with encoder. The number of pulses is 3ppr
4: Gearbox gear ratio: 1:10, 1:16, 1:20, 1:30, 1:35, 1:39, 1:50, 1:62, 1:66, 1:87, 1:102, 1:153, 1:169, 1:210, 1:243:1, 1:297, 1:350

Our team has more than 10 years of experience in micromotor design, development and production, and can realize product development and auxiliary design according to customer needs!
Your needs are our efforts, welcome to contact us at any time!

N30 Micro DC Brush Motor With Rotundity Gear Reducer Optional Gear Ratio

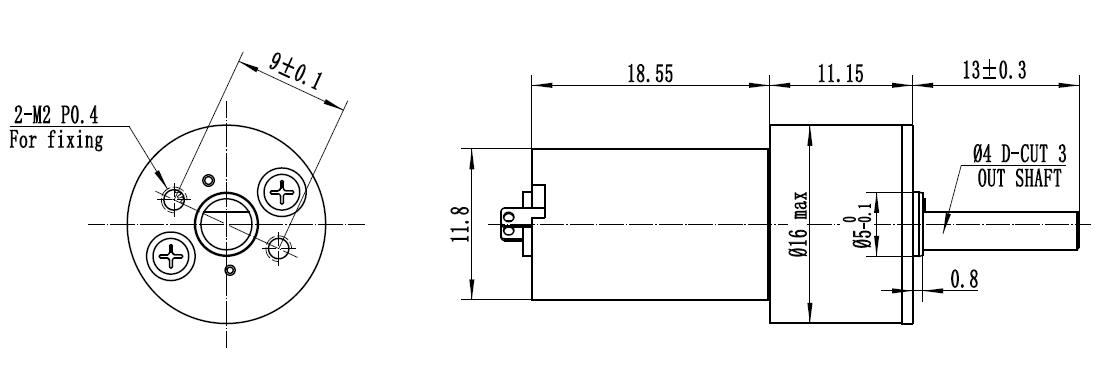

Mechanical Dimension:MM

N30 Micro DC Brush Motor With Rotundity Gear Reducer Optional Gear Ratio

Typical Applications

Office Automatic Equipments
Printer/paper Feeder
Bank Equipments
Safe Box
Ad Equipment
Household Appliances
Electtric Door Locks

Specifications

Product Name	N30 DC motor with gearbox Motor
Model	GM16-030-297G-13D
Rated Voltage	3 V DC
No load speed	50 RPM
No load current	220 mA
Rated speed	31 RPM
Rated current	660 mA
Rated torque	0.7 kgf.cm
Stall torque	2.5 kgf.cm
Stall current	2.3 A
Gear Ratio	1:297
Noise	＜45dB
Back lash	3 deg
Life time	200 h

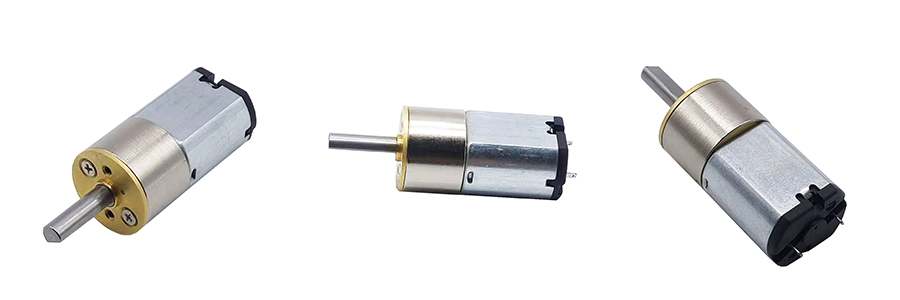

Product Detail Presentation

N30 Micro DC Brush Motor With Rotundity Gear Reducer Optional Gear Ratio
