NEMA 11 hybrid stepper motor 1.8 degree step angle 2-phase stepper motor with Anti-backlash nut

Brand Name : VIC-TECH

Model Number : 28C0208-085X

Certification : RoHS, ISO9001

Place of Origin : China

MOQ : 1Unit

Price : $54.5~$78.3/Unit

Payment Terms : Western Union, T/T, L/C, MoneyGram

Supply Ability : 100000 Units/year

Delivery Time : 15-30 work days

Packaging Details : Standard export package in corrugated carton (Mass production).

Lead screw : Tr4.77*10.16-8 Black TFE coating

Linear travel per step : 0.0508mm/step

Step angle : 1.8°

Motor's phases : 2 phases

Lead screw lead : 10.16mm

Contact Now

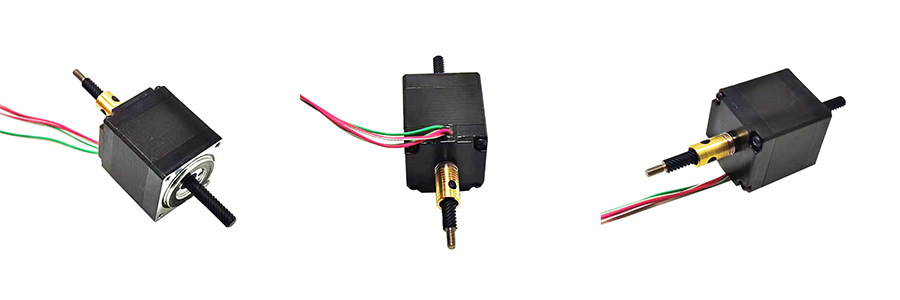

NEMA 11 hybrid stepper motor 1.8 degree step angle 2-phase stepper motor with Anti-backlash nut

Motortype: Hybrid stepper motorMotorsize:28mm* 32.2mm heightStep angle: 1.8°Lead screw type:Tr4.77*10.168Lead screwlead:10.16mm
Lead screw total length:85.68mm
With black TFE coating on lead screwWith anti-backlash nut

Our team has more than 20 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

NEMA 11 hybrid stepper motor 1.8 degree step angle 2-phase stepper motor with Anti-backlash nut

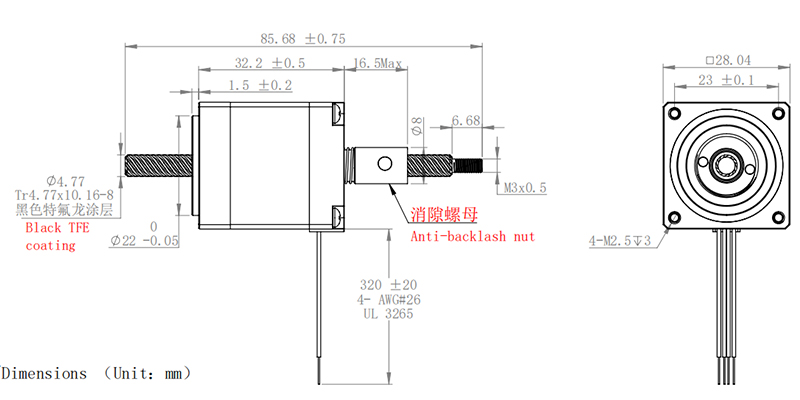

Design Layout (Unit:mm):

NEMA 11 hybrid stepper motor 1.8 degree step angle 2-phase stepper motor with Anti-backlash nut

Parameter sheet:

Model No.

28C0208-085X

Lead screw diameter

φ4.77mm

Lead screw lead

10.16mm

Linear travel per step

0.0508mm/step

Motor’s phases

2 phases

Step Angle

1.8°

Rated current/phase

0.5A

Resistance/phase

9.1Ω±10%

Inductance/phase

6.0mH±20%

Insulation class

B

Insulation resistance

100MΩ(500VDC)

Heat rise

80℃
Operating Enviroment -10℃~50℃；20%RH~90%RH
Storage Enviroment -20℃~70℃；15%RH~90%RH

Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

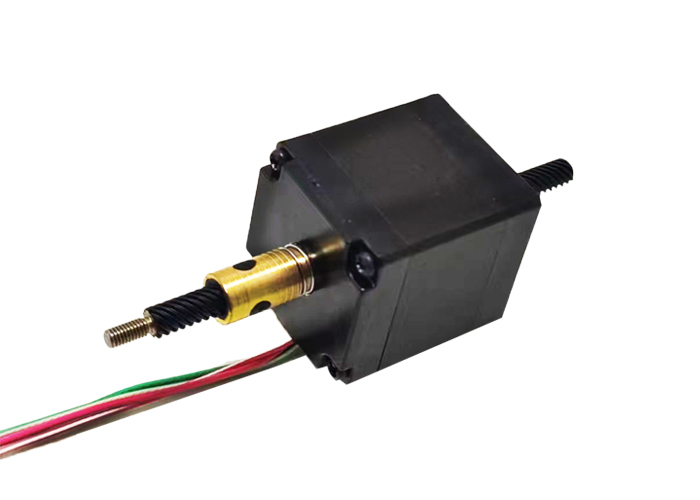

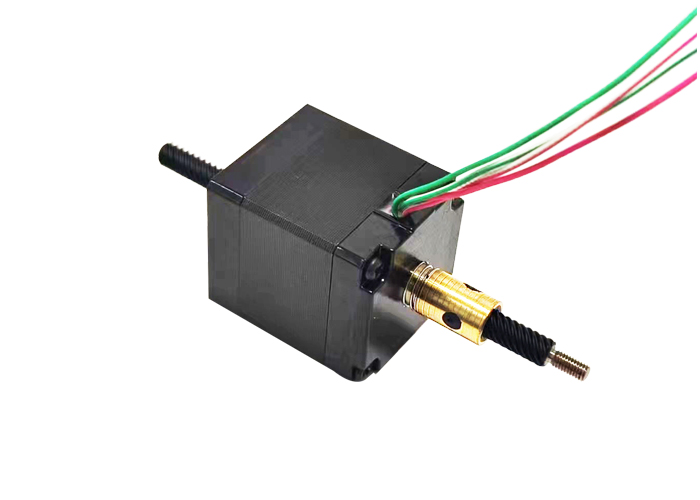

Product Detail Presentation

NEMA 11 hybrid stepper motor 1.8 degree step angle 2-phase stepper motor with Anti-backlash nut

NEMA 11 hybrid stepper motor 1.8 degree step angle 2-phase stepper motor with Anti-backlash nut
