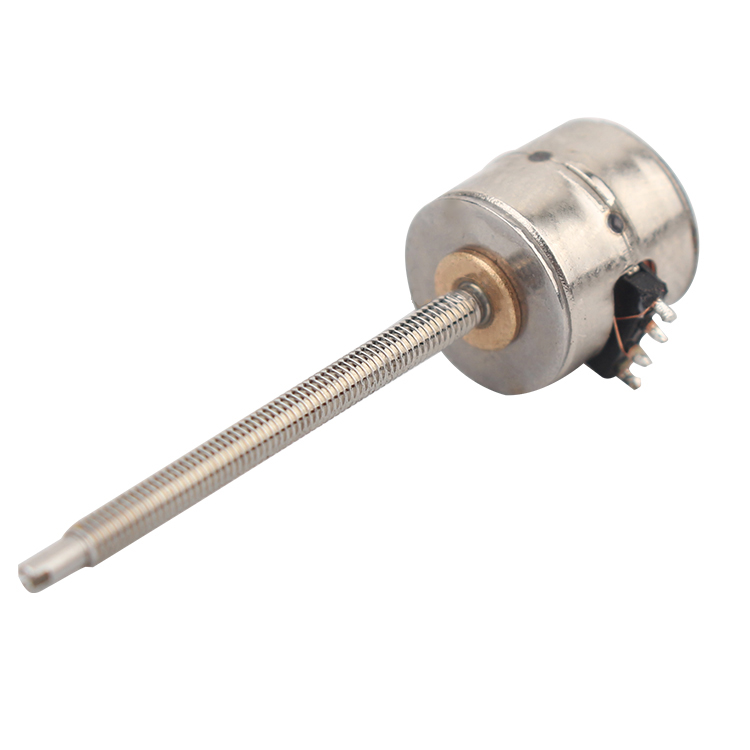

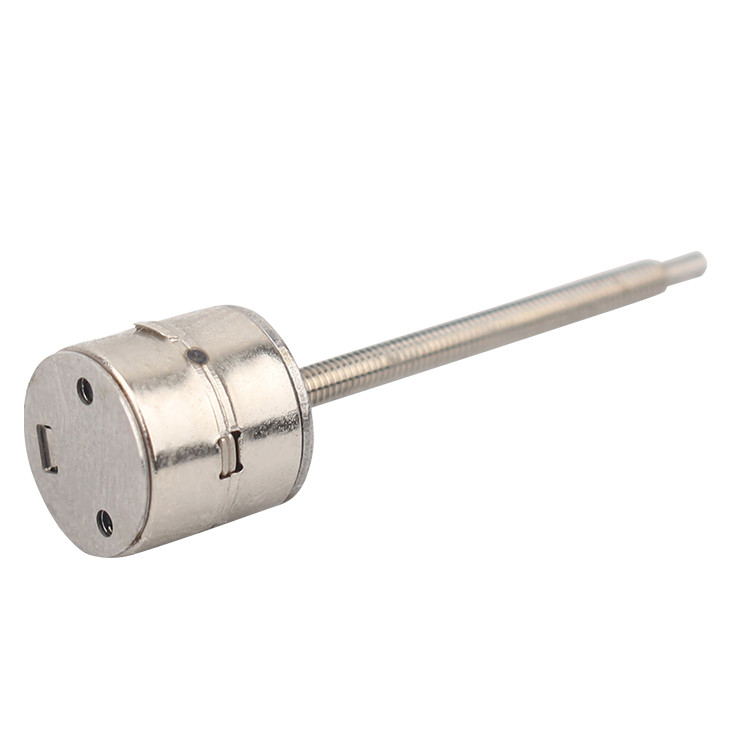

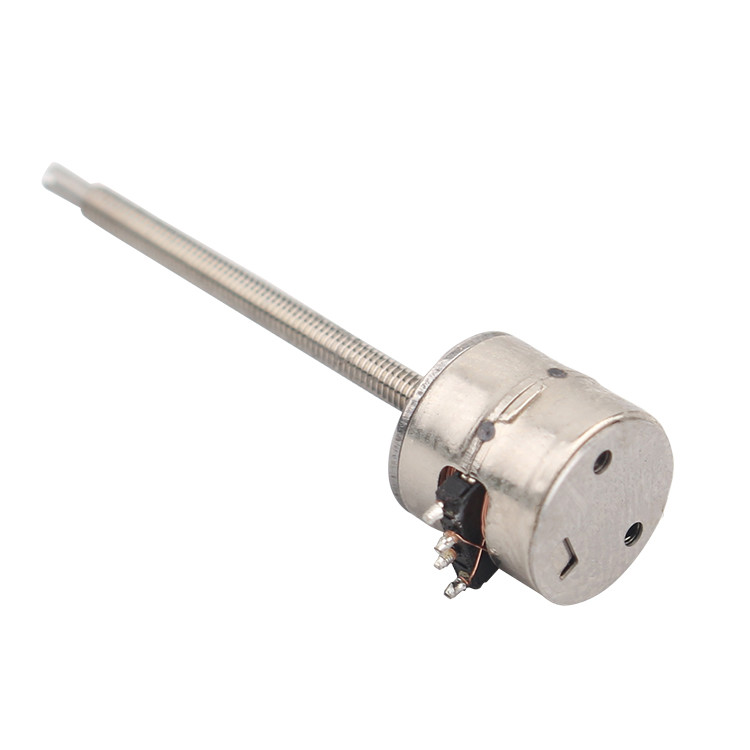

VSM0810 8mm micro stepper motor 2 phase pm stepper
motor for Camera Lenses and Door Locks
VSM0810 is a precision micro stepping motor body outer diameter 8MM, body length 8.2MM, shaft outer diameter 1MM, the shaft length can be changed according to the needs, and can be equipped with gears, pulleys,
Corresponding output devices such as worm and screw.
The motor has a basic step angle of 18 degrees and the motor runs 20 steps per week.
Because of its small size, high precision, and easy control, this miniature stepper motor is widely used in cameras, optical instruments, lenses, flashlights, precision medical equipment, automatic door locks and other fields.

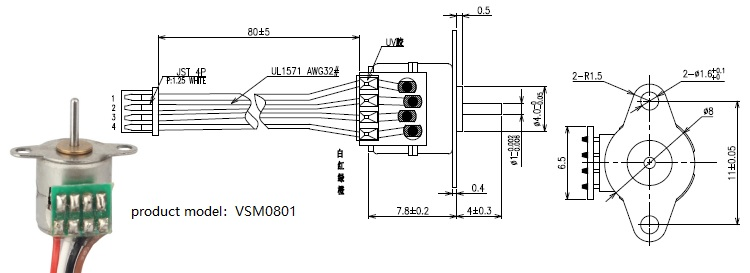

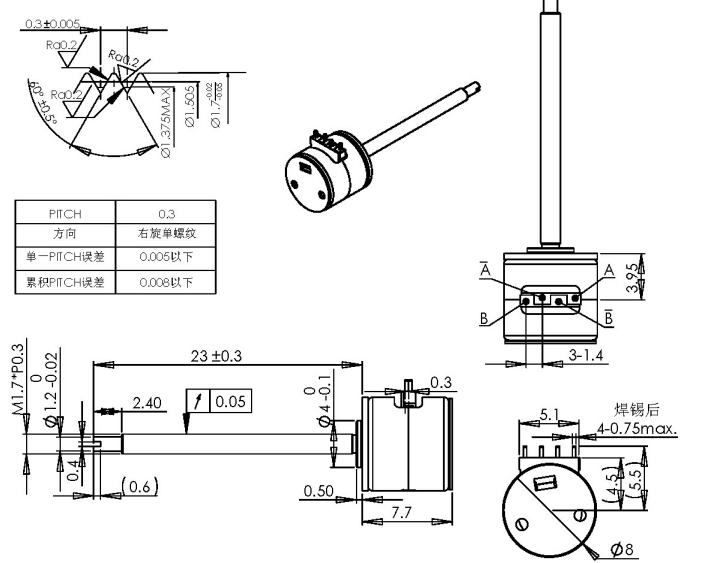

Mechanical Dimension:MM
Technical Features
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.
At the same time, we can match the corresponding drive system to meet the needs of customers!
Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!
Typical Applications
Specifications
| Product Name | 8mm micro stepper motor |
| Model | VSM0810 |
| Rated Voltage | 5V |
| Current Per Phase | 300mA /phase |
| Coil Resistance | 16Ω±7% |
| No. Of phase | 2 Phases |
| Step Angle | 18 degree |
| Excitation Method | 2 Phase Excitation |
| Drive Mode | Bipolar Drive |
| Pull-In Torque | More Than 2.8 gf.cm At 480 pps |
| Pull-Out Torque | More Than 3.8 gf.cm At 480 pps |
| Noise | 45 dB(Max.) |
| Max. Response Frequency | More Than 800 pps,No Load |
| Max. Starting Frequency | More Than 2000 pps,No Load |
| Insulation Class | Class E for Coils |
| Insulation Strength | 100 V AC for One Second |
| Insulation Resistance | 10MΩ (DC 100 V) |
| Operating Temperature Range | -10~+60 ℃ |
| Weight | 2.2g(Ref.) |
| OEM & ODM SERVICE | AVAILABLE |
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Torque Curve For Reference

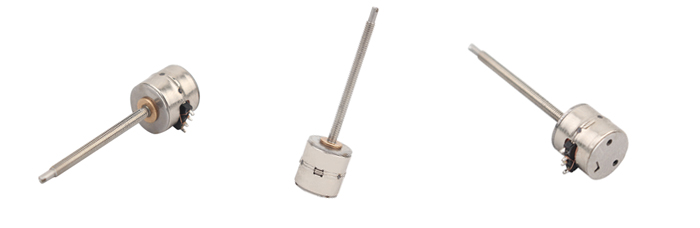

Example of the same type
Customization service
Motor’s design can be adjusted based on customer’s requirement including:
Motor’s diameter: we have 6mm, 8mm, 10mm, 15mm and 20 mm diameter motor
Coil resistance/ rated voltage: coil resistance is adjustable, and with higher resistance, motor’s rated voltage is higher.
Bracket design/ lead screw length: if customer want the bracket to be longer/short, with special design such as mounting holes, it’s adjustable.
PCB + cables + connector: PCB’s design, cable length and connector pitch are all adjustable, they can be replaced into FPC if customers require.
