High Precision High Torque 4096 Big Reduction Ratio VSM10-IG64 Micro Planetary Gearbox

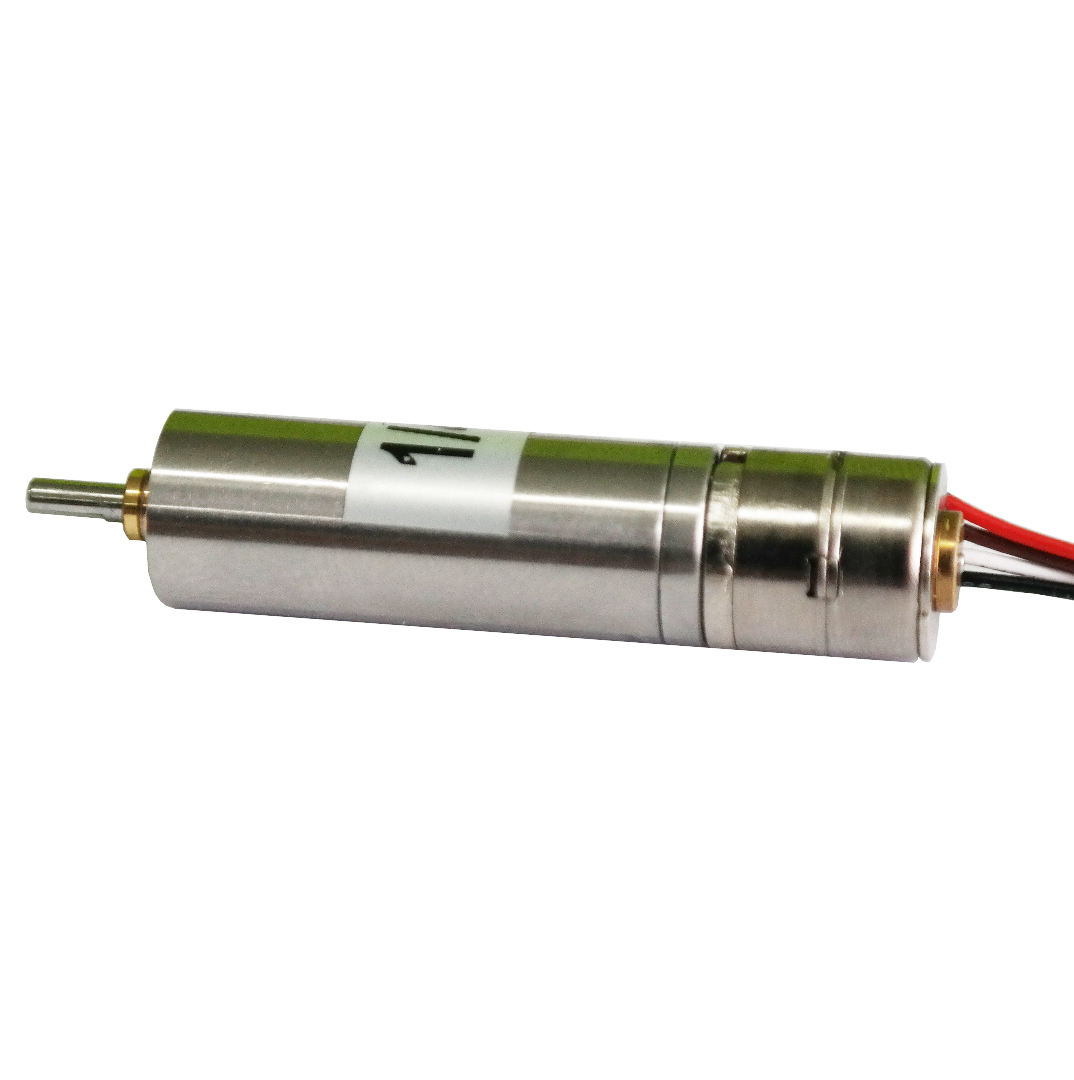

VSM 10- IG64 is a 10mm micro stepper motor attached with a planetary gearbox, planetary gearbox is high precision and high end gearbox, it looks extremely nice, and it’s more expensive compared to other gearboxes.
Motor basic step angle is 18 degrees, which means, 20 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach 0.005~4.5 degrees, can be used in many requirements, specially high precision industry such as medical equipment, measuring devices, etc.
A planetary gearbox can have several levels, each level, it is 4:1 gear ratio.

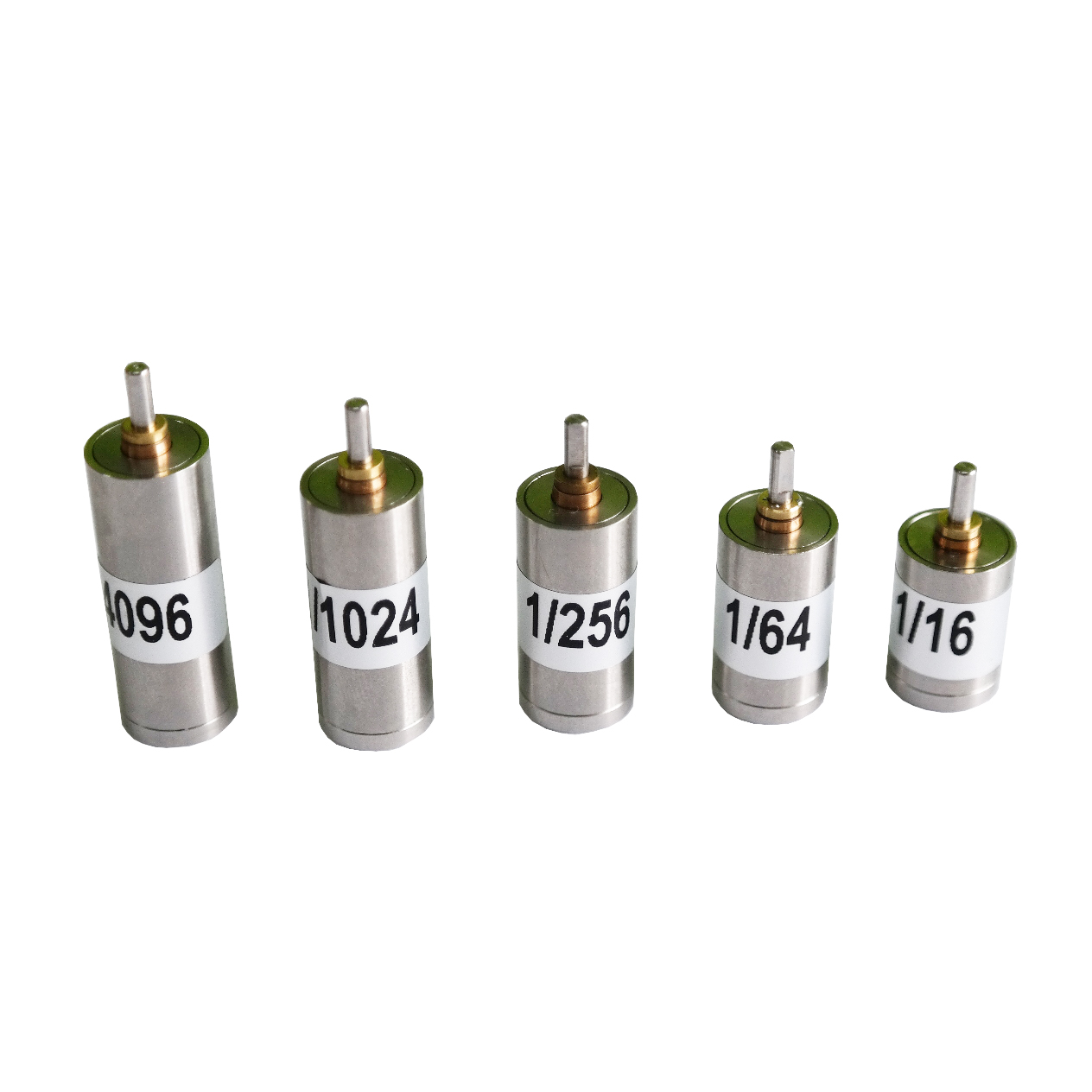

So with different levels, gear ratio can be 4:1, 16:1, 64:1, 256:1, 1024:1 and 4096:1, customers can choose different gear ratio, according to different use torque speed requirements of speed.
Given the proper driving frequency of the stepper motor can reach the determination of the speed.
This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms.
The shaft of this gear box is standard 2mm D shaft.
About the motor, we have two type of coil resistance: 12.2Ω and 39Ω, lower resistance will have higher torque, and power consumption.

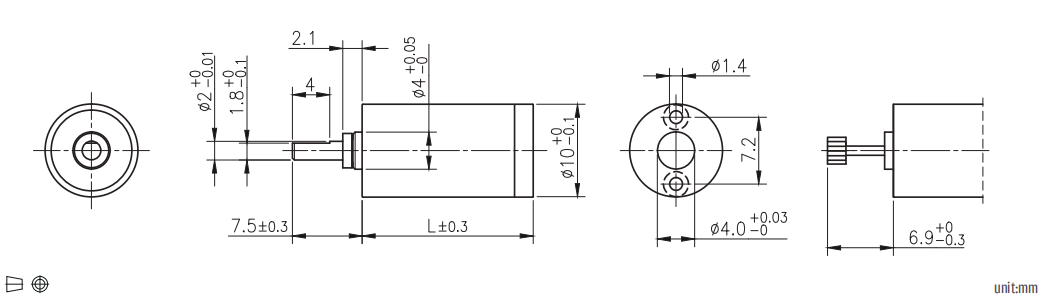

Mechanical Dimension:MM
Gearbox parameters:
| Gear ratio | 4:1 | 16:1 | 64:1 | 256:1 | 1024:1 | 4096:1 |
| Rated tolerance torque (gf*cm Max) | 50 | 100 | 300 | 400 | 500 | 600 |
| Max momentary tolenrance torque | 150 | 300 | 900 | 1200 | 1500 | 1800 |
| Efficiency | 85% | 75% | 65% | 55% | 45% | 40% |
| Length(L) | 11.7 | 14.8 | 17.9 | 21 | 24.1 | 27.2 |
| Weight(g)/With sleeve bearings | 6.2 | 7.2 | 8.2 | 10.2 | 11.2 | 13.2 |
Motor parameters:
| PRODUCT NAME | 10mm geared stepper motor |
| MODEL | VSM10- IG64 |
| CURRENT PER PHASE | 250mA/PHASE |
| RESISTENCE | 12.2Ω or 39Ω±7% |
| NO.OF PHASES | 2 PHASES |
| PULL-OUT TORQUE | MORE THAN 190gf-cm AT 500 PPS |
| HOLDING TORQUE | MORE THAN 450 gf-cm AT 0pps |
| MAX RESPONSE FREQUENCY | MORE THAN 1000 pps |
| MAX STARTING FREQUENCY | MORE THAN 900pps |
| INSULATION STRENGTH | 100 V AC FOR ONE SECONO |
| INSULATION RESISTANCE | 500Ω DC 500V |

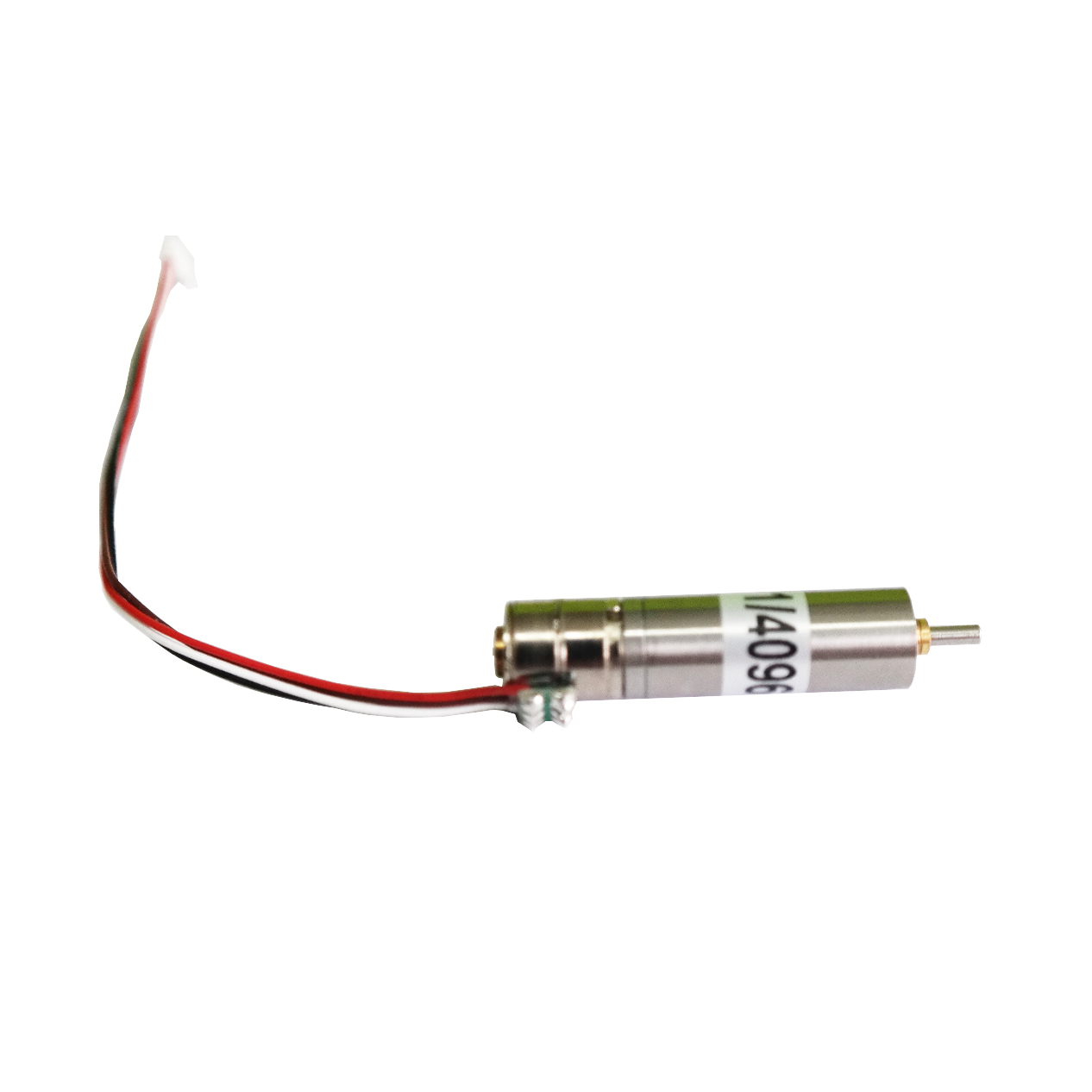

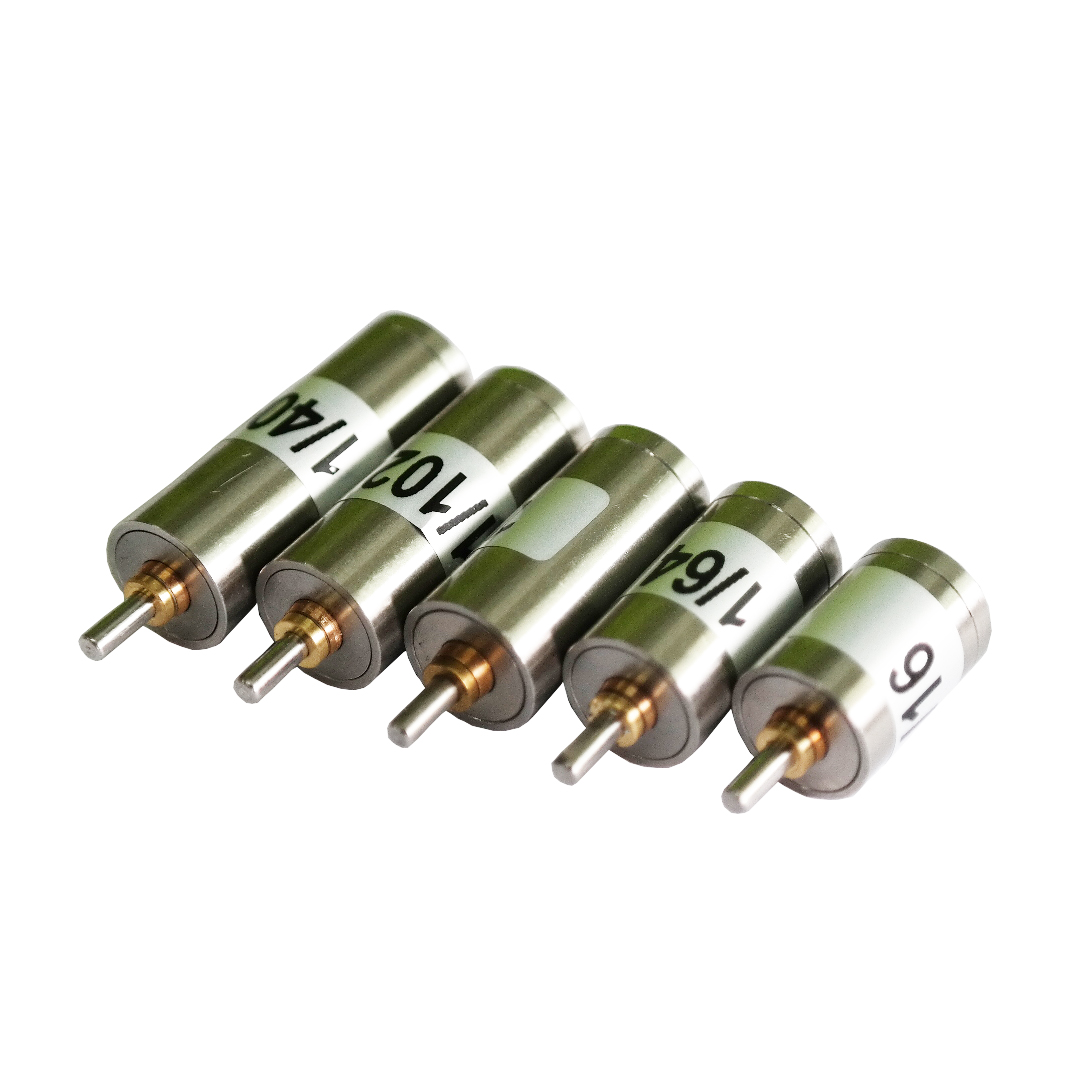

Product Detail Presentation:
