2 Phase Micro Stepper Motor 8mm Diameter For Camera Lens And Door Lock

Name: 2 Phase Micro Stepper Motor 8mm Diameter For Camera Lens And Door Lock
Brand: VIC-TECH
Price: 2 USD

Quality 2 Phase Micro Stepper Motor 8mm Diameter For Camera Lens And Door Lock wholesale

Brand Name : VIC-TECH

Model Number : VSM08

Certification : RoHS

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1Unit

Price : $2~$6/Unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000000 Units/year

Delivery Time : 15-30 work days

Packaging Details : Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit

Motor diameter : 8mm

Rated voltage : 3.3V DC(Driver lc:L6219)

No. of phases : 2 phases

Current Per Phase : 500mA/Phase

Coil Resistance : 6±7% Ohm/Phase

Step angle : 18°Step

Excitation Method : 2 phase excitation

Drive mode : Bipolar drive

Pull-out torque : More than 2.5gf-cm at 300 pps

Max response frequency : More than 1000 pps

Max starting frequency : More than 900 pps

Insulation Class : Class E For coils

Insulation strength : 100V AC FOR ONE SECOND

Insulation resistance : 1mΩ DC 100 VDC

Operating Temperature Range : -10~+60℃

Contact Now

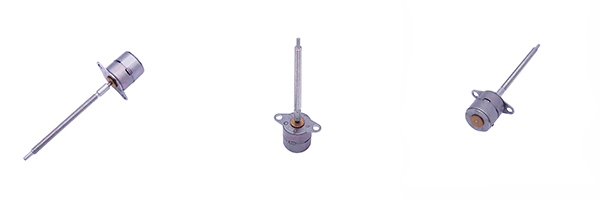

8mm diameter micro stepper motor 2-phase pm stepper motor for camera lens and door lock.

This miniature stepping motor with a diameter of 8mm is small in size, large in torque, high in accuracy, and long in life. The action of the motor is completely controlled by the driver. This product can be used with precision instruments or electronic products.
Our products can be customized, if you are interested, you can write to me.

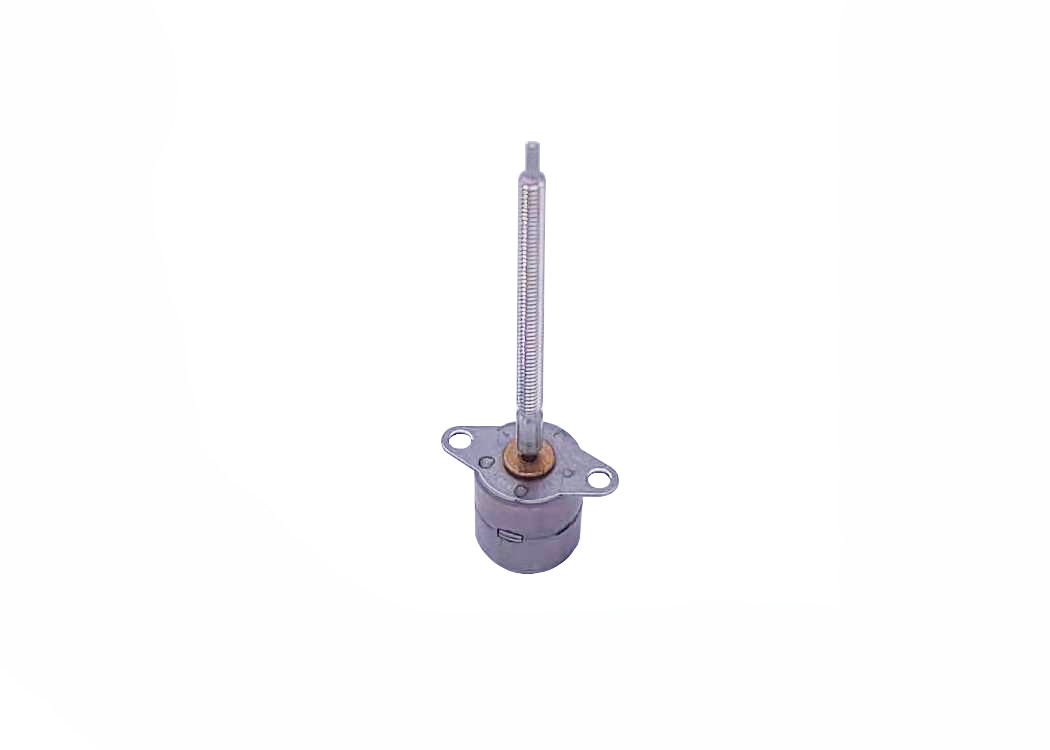

2 Phase Micro Stepper Motor 8mm Diameter For Camera Lens And Door Lock

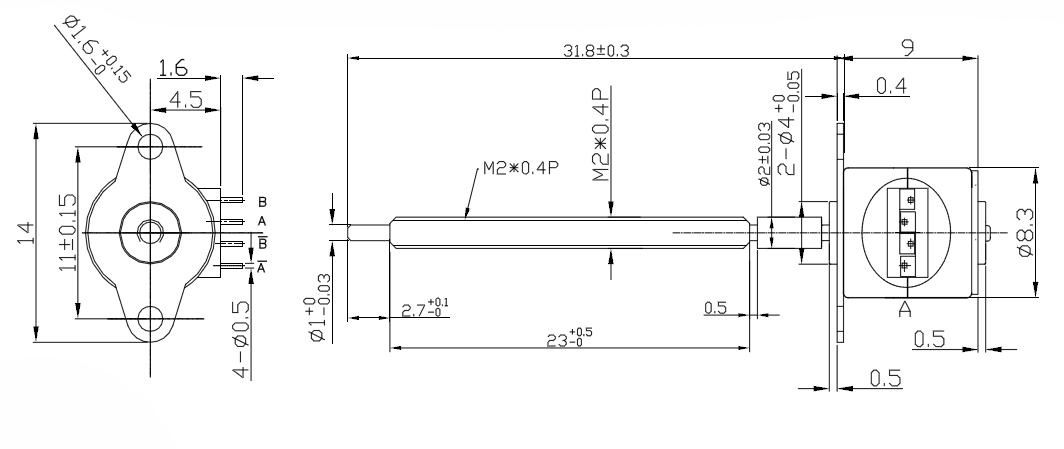

Mechanical Dimension:MM

2 Phase Micro Stepper Motor 8mm Diameter For Camera Lens And Door Lock

Technical Features
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.

At the same time, we can match the corresponding drive system to meet the needs of customers!

Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

Typical Applications

Intelligent Security Products
Camera Lenses
Door Locks
Wearable device

Specifications

Motor diameter	8mm
Rated voltage	3.3V DC(Driver lc:L6219)
No. of phases	2 phases
Current Per Phase	500mA/Phase
Coil Resistance	6±7% Ohm/Phase
Step Angle	18°Step
Excitation Method	2 phase excitation
Drive mode	Bipolar Drive
Pull-out torque	More than 2.5gf-cm at 300 pps
Max response frequency	More than 1000 pps
Max starting frequency	More than 900 pps
Insulation Class	Class E For coils
Insulation strength	100V AC FOR ONE SECOND
Insulation resistance	1mΩ DC 100 VDC
Operating Temperature Range	-10~+60℃

Competitive Advantage

High quality and the best price.
Fast deliver,storage company and rich inventory
Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

2 Phase Micro Stepper Motor 8mm Diameter For Camera Lens And Door Lock

Product Detail Presentation
