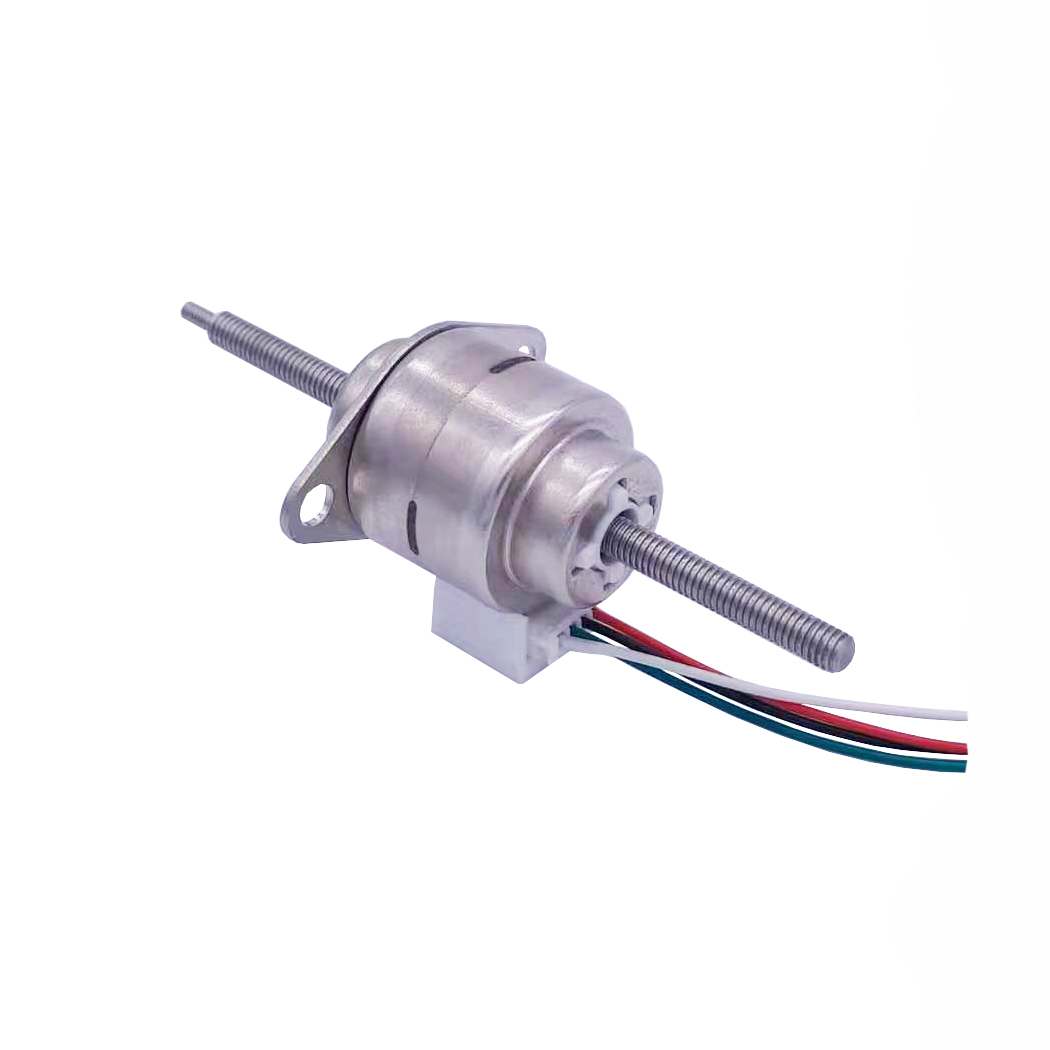

Through Shaft Mini Screw Linear Stepper Motor 20mm Step Angle 7.5 Degree

Name: Through Shaft Mini Screw Linear Stepper Motor 20mm Step Angle 75 Degree
Brand: VIC-TECH
Price: 6.5 USD

Quality Through Shaft Mini Screw Linear Stepper Motor 20mm Step Angle 7.5 Degree wholesale

Brand Name : VIC-TECH

Model Number : SM20L-48S-0125-50-01

Certification : RoHS, ISO9001

Place of Origin : China

MOQ : 1Unit

Price : $6.5~$30/Unit

Payment Terms : Western Union, T/T, L/C, MoneyGram

Supply Ability : 100000 Units/year

Delivery Time : 15-30 work days

Packaging Details : Standard export package in corrugated carton (Mass production).

Motor diameter : 20mm

Rated voltage : 5V

Power : 3.4W

Phase Current : 385mA

Phase Inductance : 13(±10%）Ohm/20C

Phase inductance : 6.5(±20%）Mh/1kmz

Step angle : 7.5°

Screw Length : 20mΩ（DC 500V）

Insulation Class : B

Mass : 35g

Contact Now

Through shaft diameter 20mm step angle 7.5 degree mini screw linear stepper motor

This stepper motor is specifically designed for linear movement application, with lead screw.

We have two step angle: 7.5/15 degree, lead pitch is 0.6096mm.

For 7.5 degree, each round is 48 steps, which mean each step lead screw moves 0.0127mm.

For 15 degree, each round is 24 steps, which mean each step lead screw moves 0.0254mm.

This 20mm stepper motor is our patented product. It converts the rotation of the motor into a linear movement of lead screw. It is mainly used in high precision.

Typical applications:

* Medical Equipment

* Linear Robotic Control

* Precision Calibration

* High Precision Valve

* Other Precise Position Movement

Plus tt has extra low noise and high stability.

Through Shaft Mini Screw Linear Stepper Motor 20mm Step Angle 7.5 Degree

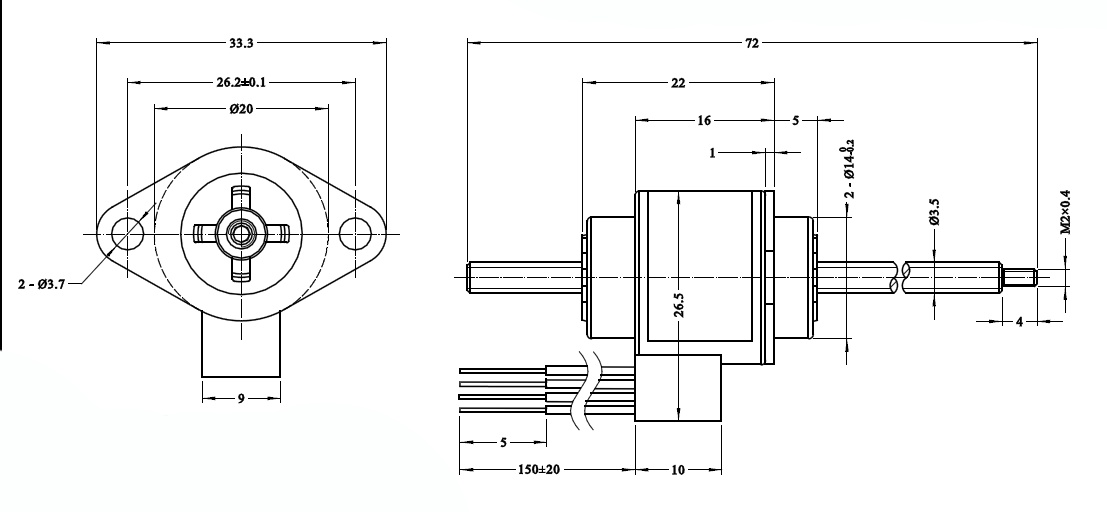

Design Layout (Unit:mm)

Through Shaft Mini Screw Linear Stepper Motor 20mm Step Angle 7.5 Degree

Parameter sheet:

Motor diameter	20mm
Rated voltage	5V
Power	3.4W
Phase Current	385mA
Phase Inductance	13(±10%)Ohm/20C
Phase inductance	6.5(±20%)Mh/1kmz
Step angle	7.5°
Screw Length	20mΩ(DC 500V)
Insulation Class	B
Mass	35g

Competitive Advantage

High quality and the best price.
Fast deliver,storage company and rich inventory
Near Shanghai port, the traffic is very convenient.

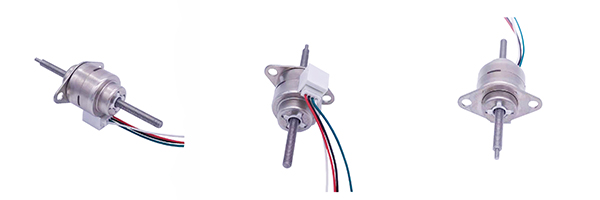

Product Detail Presentation

Through Shaft Mini Screw Linear Stepper Motor 20mm Step Angle 7.5 Degree
