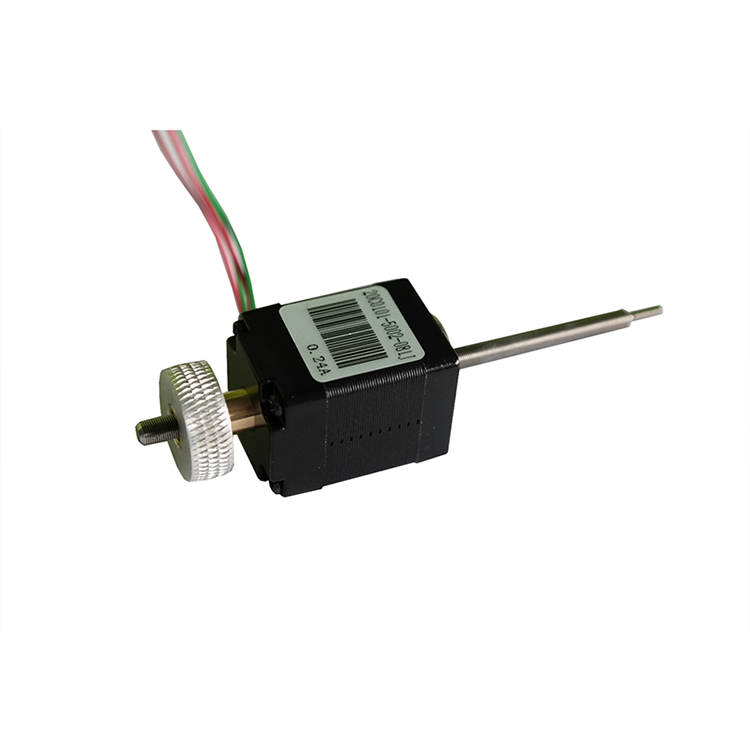

High-precision and high-quality trapezoidal screw 20mm diameter hybrid stepping motor

Brand Name : VIC-TECH

Model Number : 20C0101-5002-065J

Certification : RoHS

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1 Unit

Price : $42.5 - $70/ Units

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000Units per month

Delivery Time : 15-30 work days

Packaging Details : Standard export package, or can be customized

Step Angle(degrees) : 1.8°

Motor diameter : 20mm

Phase : 2

Type : Hybrid

Rated voltage : 5V

Current / Phase : 0.24A

Contact Now

High-precision and high-quality trapezoidal screw 20mm diameter hybrid stepping motor

Our stepper motor series are: 20mm, 28mm, 35mm, 39mm, 42mm, 57mm, 60mm, 86mm, 110mm, 130mm. Two-phase, three-phase and four-phase hybrid stepping motor. The DC brushless motor range includes 42BLS, 57BL(S), 86BLS, and matching DC brushless drivers.
Therefore, the products are in line with ROHS requirements. Applications include robotics, industrial electronic automation equipment, medical equipment, advertising equipment, printing equipment, textile machinery and so on. Has been exported to the United States, Germany, Italy, Spain, the United Kingdom, Mexico, Brazil and other more than 20 countries.

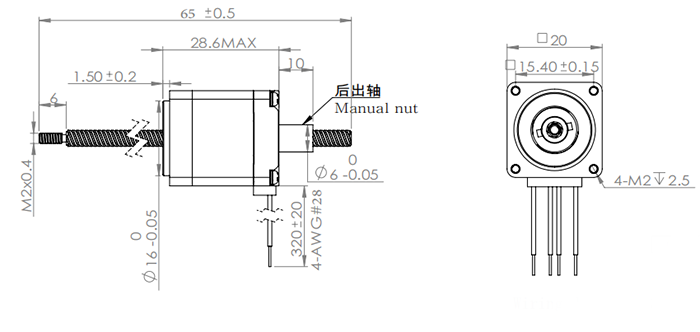

Mechanical Dimension:MM

High-precision and high-quality trapezoidal screw 20mm diameter hybrid stepping motor

Typical Applications

  • 3D Printer
  • Monitoring Equipment
  • Medical Machinery
  • Vending Machine
  • Engineering Vehicle
  • CNC Engraving Machine
  • ATM Machine

Specifications

Motor diameter 20mm
Motor type Hybrid stepper motor
Step angle 1.8 degree
Rated voltage 5V
Rated current/phase 0.24A
Resistance/phase 20.4Ω±10%
Minimal Thrust /300pps 2.4KG
Linear travel per step 0.0015mm/step
Lead screw diameter 3.5mm
Lead screw lead 0.3mm

The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.

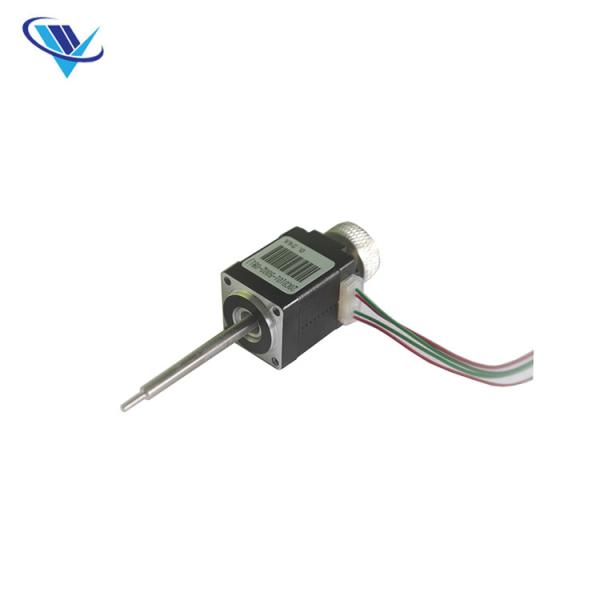

Product Detail Presentation

High-precision and high-quality trapezoidal screw 20mm diameter hybrid stepping motor
