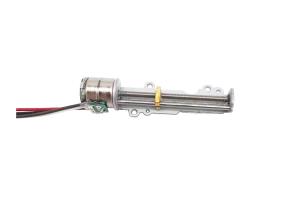

5V slider screw linear Pm 10mm micro stepper motor 270mA for camera lens

Name: 5V slider screw linear Pm 10mm micro stepper motor 270mA for camera lens
Brand: VIC-TECH
Price: 3 USD

Quality 5V slider screw linear Pm 10mm micro stepper motor 270mA for camera lens wholesale

Brand Name : VIC-TECH

Model Number : VSM1008-T

Certification : RoHS

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1Unit

Price : $3~$8/Unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000000 Units/year

Delivery Time : 15-30 work days

Packaging Details : Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit

Phase : 2

Voltage : 5V DC

Resistance : 15±7% ohm/PHASE

Weight : 10g

Rotation : CW/CCW

Step Angle : 18°

Contact Now

VSM1008-T 5V slider screw linear Pm 10mm micro stepper motor 270mA for camera lens

VSM1008-T is a precision screw motor with a lead of 0.5mm, which generates thrust through the rotation of the screw and the support of the screw.
The basic step angle of the motor is 18 degrees, the motor runs 20 steps per week, and the displacement resolution can reach 0.02mm to achieve the purpose of precise control.
Use high-quality materials to ensure stable performance and high work efficiency
The stroke drives the precise diagonal line to move the metal slider up and down, and the bracket basically adopts a metal structure
The actuator adopts subdivision drive mode to meet the requirements.
Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

5V slider screw linear Pm 10mm micro stepper motor 270mA for camera lens

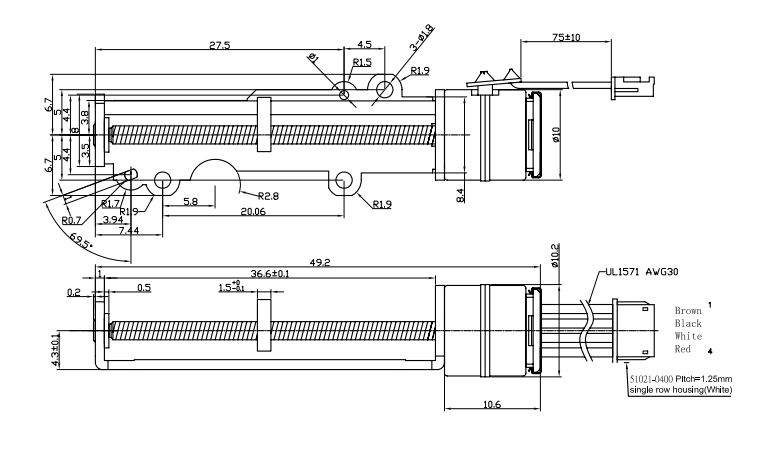

Mechanical Dimension:MM

5V slider screw linear Pm 10mm micro stepper motor 270mA for camera lens

Typical Applications

Intelligent Security Products
Camera Lenses
Door Locks
Wearable device

Product Name	10mm micro stepper motor
Model	VSM1008-T
Rated Voltage	5V DC
Coil Resistance	15±7% ohm/PHASE
No.Of Phases	2 Phases
Step Angle	18°/Step
Current Per Phase	270mA/Phase
Drive Mode	Bipolar Drive
Pull-In Torque	More than 7 gf-cm AT 500 pps
Holding Torque	More than 18 gf-cm AT 0 pps
Max Response Frequency	More Than 1500 PPS
Max Starting Frequency	More Than 1000 PPS
Insulation Class	CLASS E FOR COILS
Insulation Strength	100V AC FOR ONE SECOND
Insulation Resistance	50mΩ(DC 500 V)
Operating Temperature	-0~55℃

Competitive Advantage

High quality and the best price.
Fast deliver,storage company and rich inventory
Near Shanghai port, the traffic is very convenient.

Feature:

1. Can be used in DIY small slider/project/equipment measurement/laser printer
2. 2‑phase 4‑wire micro stepper motor come with planetary gearbox, planetary gearbox reducer adopts all metal structure
3. The stroke drive accurate diagonal lines to move the metal slider up and down, the bracket is basically made of metal structure
4. Using high class materials with good quality to guarantee stable performance and high working efficiency
5. Adopt advanced technology with fine workmanship, which is a necessary linear moving parts

Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.
