1.8 degree step angle 20mm diameter hybrid stepping motor Name 8 stepping motor with encoder

Brand Name : VIC-TECH

Model Number : 20HS32-C

Certification : RoHS, ISO9001

Place of Origin : China

MOQ : 1Unit

Price : $40~$64.5/Unit

Payment Terms : Western Union, T/T, L/C, MoneyGram

Supply Ability : 100000 Units/year

Delivery Time : 15-30 work days

Packaging Details : Standard export package in corrugated carton (Mass production).

Voltage(VDC) : 3.9

Amps/Phase : 0.6

Resistance/Phase(ohms)@25℃ : 6.5±15%

Step angle : 1.8°

Accuracy(NON-ACCUM) : ±5%

Inductance/Phase(mH)@1KHz : 1.7±20%

Contact Now

20HS32-C 1.8 degree step angle 20mm diameter hybrid stepping motor Name 8 stepping motor with encoder

Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

1.8 degree step angle 20mm diameter hybrid stepping motor Name 8 stepping motor with encoder

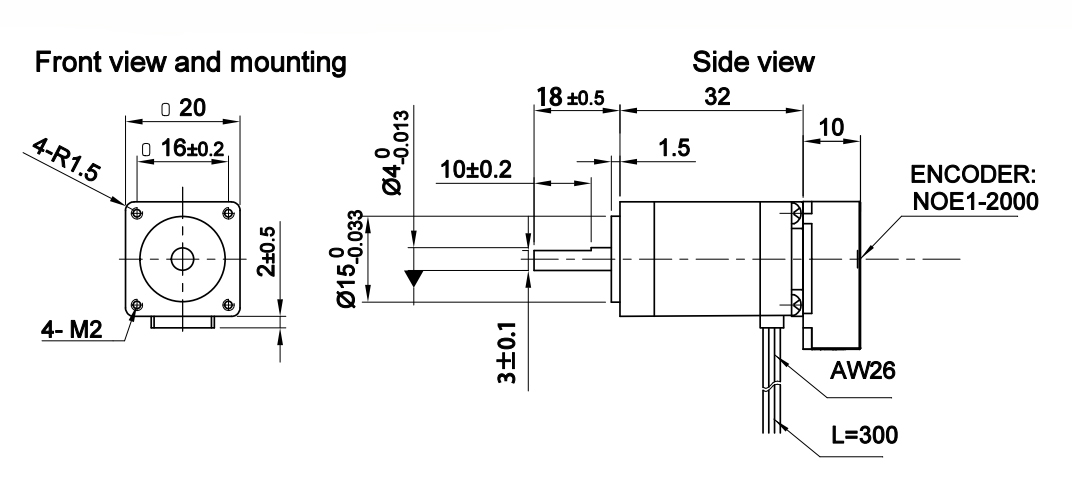

Design Layout (Unit:mm):

1.8 degree step angle 20mm diameter hybrid stepping motor Name 8 stepping motor with encoder

Parameter sheet:

Model No.

20HS32-C

Voltage(VDC)

3.9

Amps/Phase

0.6

Resistance/Phase(ohms)@25℃

6.5±15%

Inductance/Phase(mH)@1KHz

1.7±20%

Holding Torque(Nm)[IB-in]

0.018(0.159)

Detent Torque(Nm)[IB-in]

9*10-4(7.95*10-3)

Step Angle(°)

1.8

Accuracy(NON-ACCUM)

±5%

Rotor Inertia(Kg-m?)[Ib-in]

2.0*10-7[6.831*10-4]

Weight(Kg)[Ib]

0.06[6.831*10-4]

Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

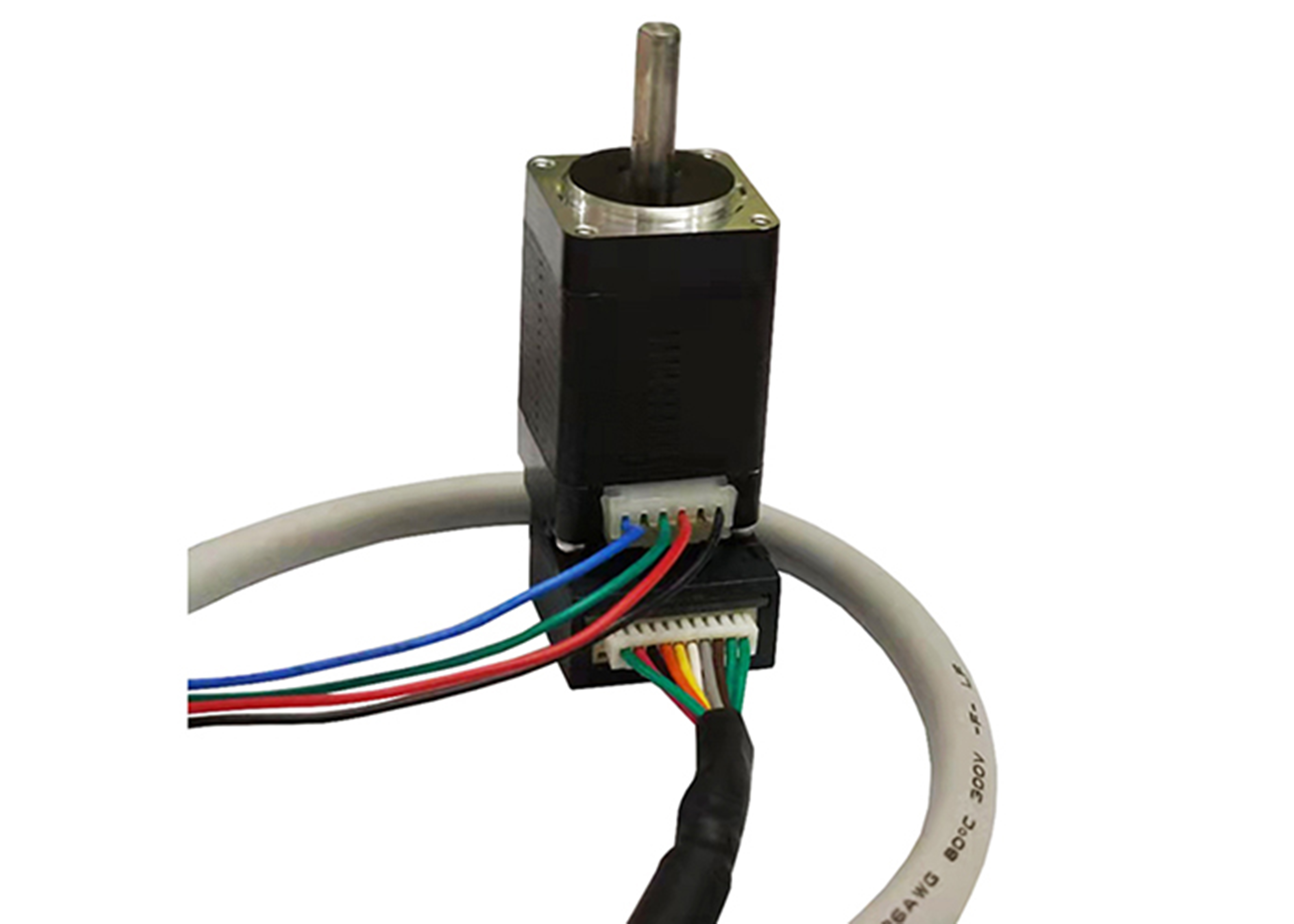

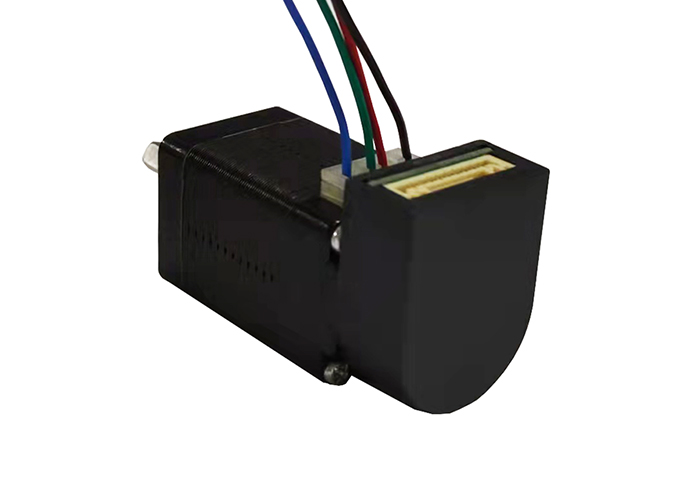

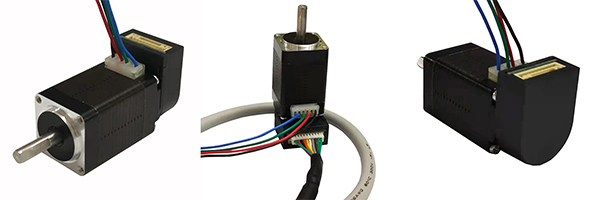

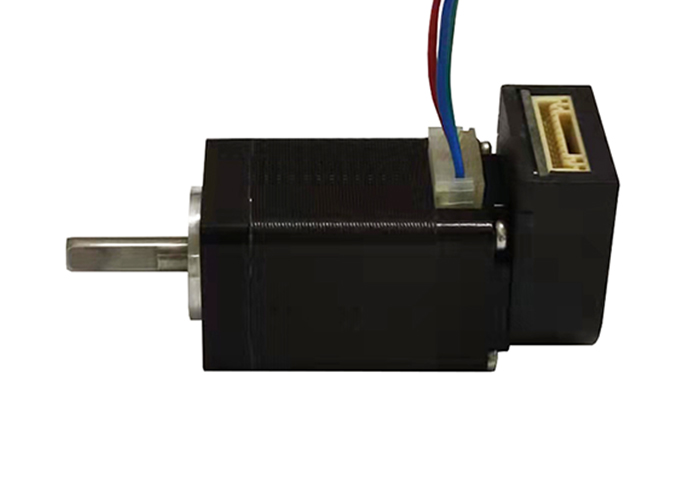

Product Detail Presentation

1.8 degree step angle 20mm diameter hybrid stepping motor Name 8 stepping motor with encoder

1.8 degree step angle 20mm diameter hybrid stepping motor Name 8 stepping motor with encoder

1.8 degree step angle 20mm diameter hybrid stepping motor Name 8 stepping motor with encoder

1.8 degree step angle 20mm diameter hybrid stepping motor Name 8 stepping motor with encoder
