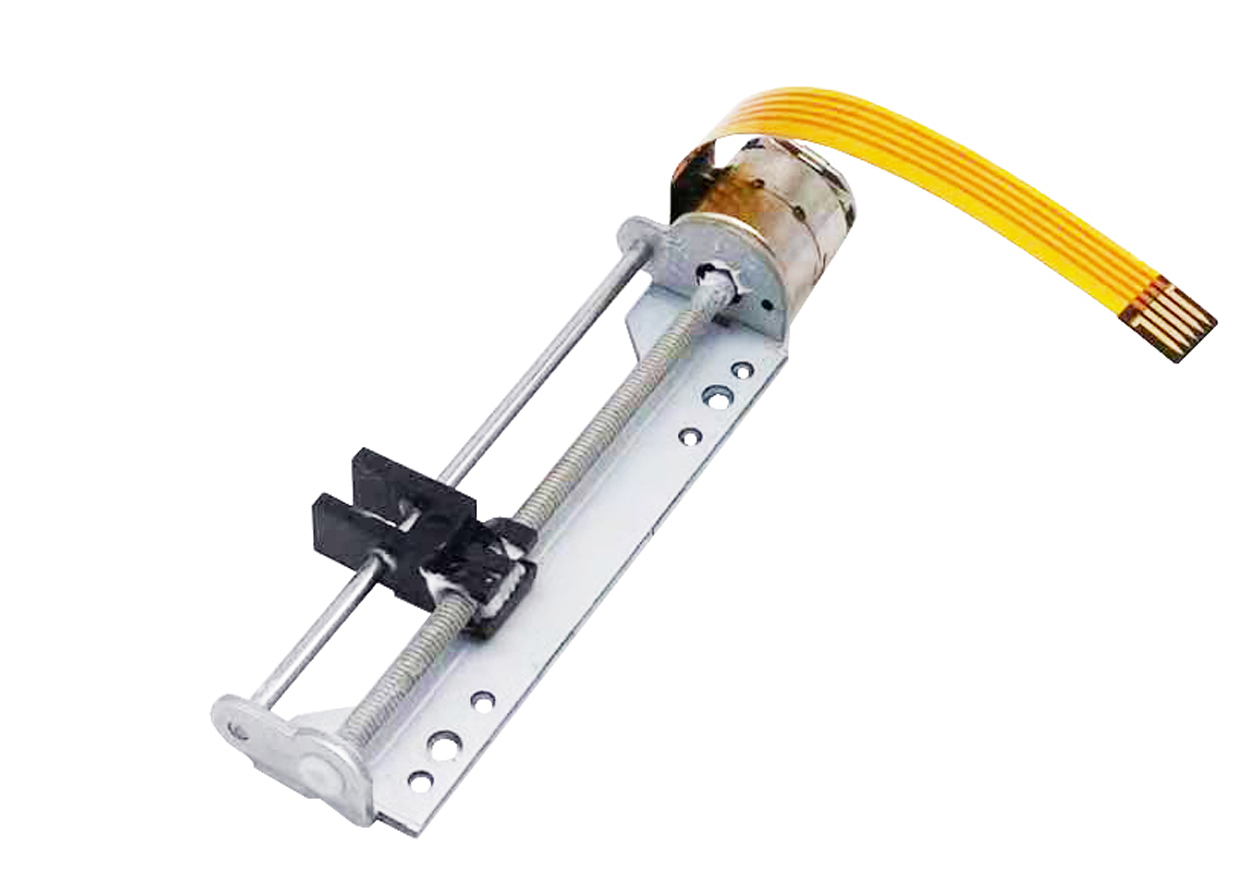

10mm NEMA 4 Micro Slider Linear Stepping Motor DC Screw Stepper Motor With Bracket 2-Phase 4-Wire Linear Stepper Motor

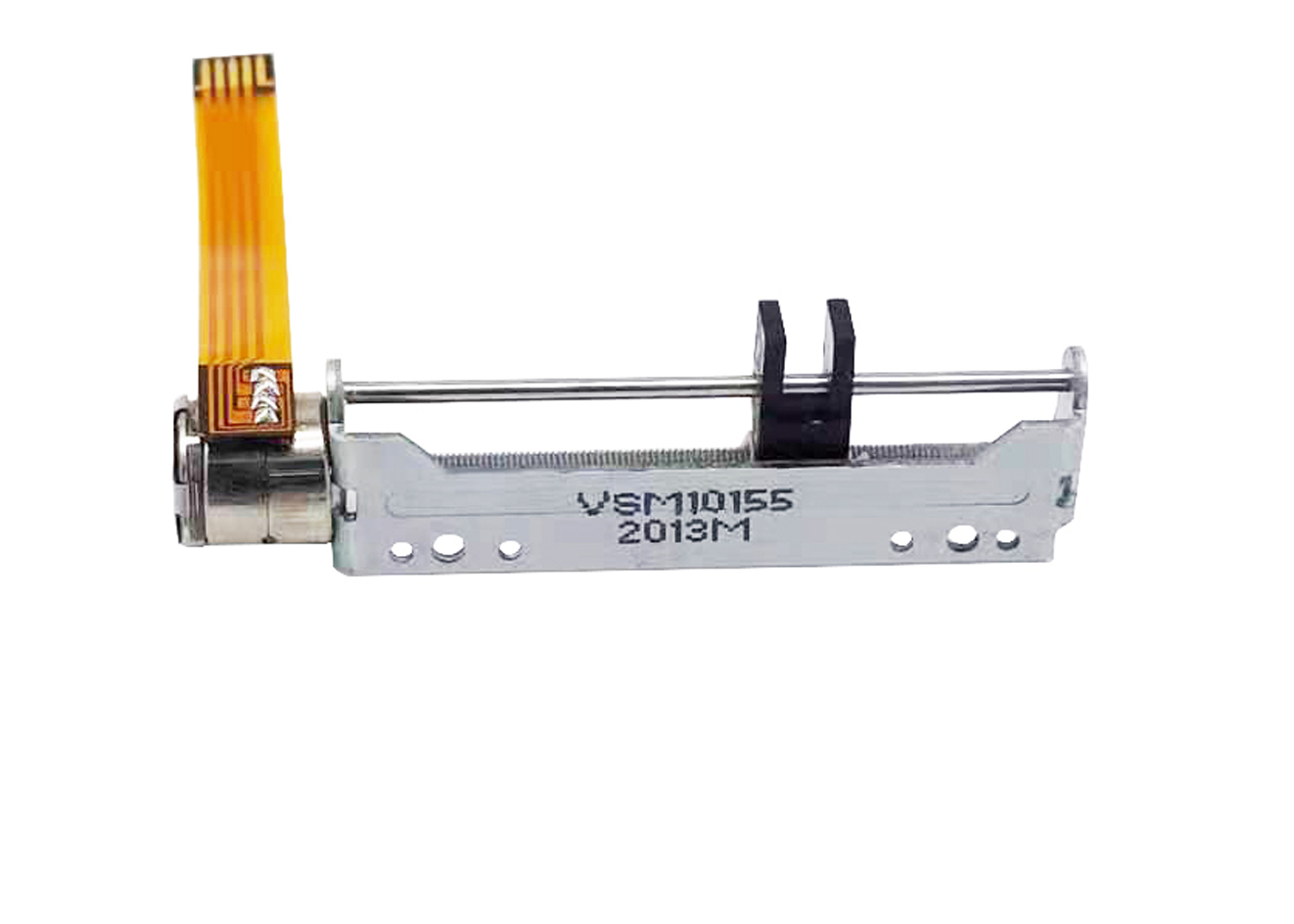

VSM10155 is a precision micro step motor, the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
Actuator aspects using subdivision drive way to meet.
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.

Mechanical Dimension:MM

Technical Features

VSM1065 is a special precious micro stepper motor (or say linear stepper motor)with a bracket and push,
the moving speed can controlled by the precious micro stepper motor driving pulse frequency, the moving distance can be controlled by the precious micro stepper driving pulse number. for this typical motor, when motor driving 2-2 phase, 1 pulse make the slide move 0.02 mm. forthis type motor, the basic slide is a golden color unit as the photo show, also the slide can customization in any other material or shape.

Typical Applications

• Intelligent Security Products

• Camera Lenses

• Door Locks

• Wearable device


Specifications

Competitive Advantage

• High quality and the best price.
• Fast deliver,storage company and rich inventory
• Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

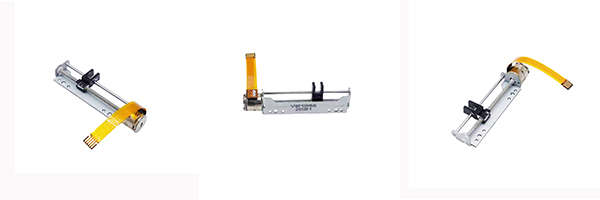

Product Detail Presentation

10mm Micro slider Linear Stepping Motor 5V DC Screw stepper motor with DC Screw stepper motor with Bracket 2-phase 4-wire linear Stepper Motor

10mm Slider Linear Stepping Motor

NEMA 4 Linear Stepping Motor

DC Screw Stepper Motor

10mm Micro Slider Linear Stepping Motor With Bracket 18 degree Step Angle for Intelligent Security Products Images
