SM08-31L M2 Lead Screw 18 Degree Linear Stepper Motor 8mm With Naked Pins

Brand Name : VIC-TECH

Model Number : SM08-31L

Certification : RoHS

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1Unit

Price : $2~$5/Unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000000 Units/year

Delivery Time : 15-30 work days

Packaging Details : Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit

Step Angle(degrees) : 18 degree

Phase : 2

Voltage : 3.3 V

Resistance : 6 Ω±10%

Weight : 4 g

Rotation : CW/CCW

Type : Permanent Magnet

Motor type : linear stepper motor

Contact Now

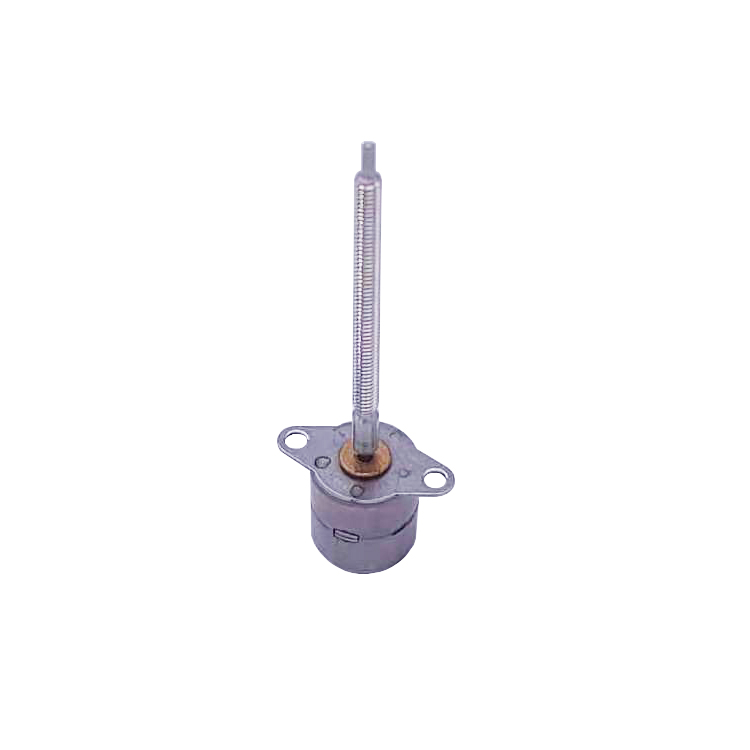

SM08-31L 8mm M2 lead screw 18 degree linear stepper motor with naked pins without PCB

This is a 8mm stepper motor with M2 lead screw on top. (M2*0.4 mm pitch)

The lead screw length is customizable.

The coil resistance of motor is also customizable (resistance of this motor is 6Ω/phase)

This motor has naked pins, without PCB and cables.

We can solder PCB and cables, if customers want them.

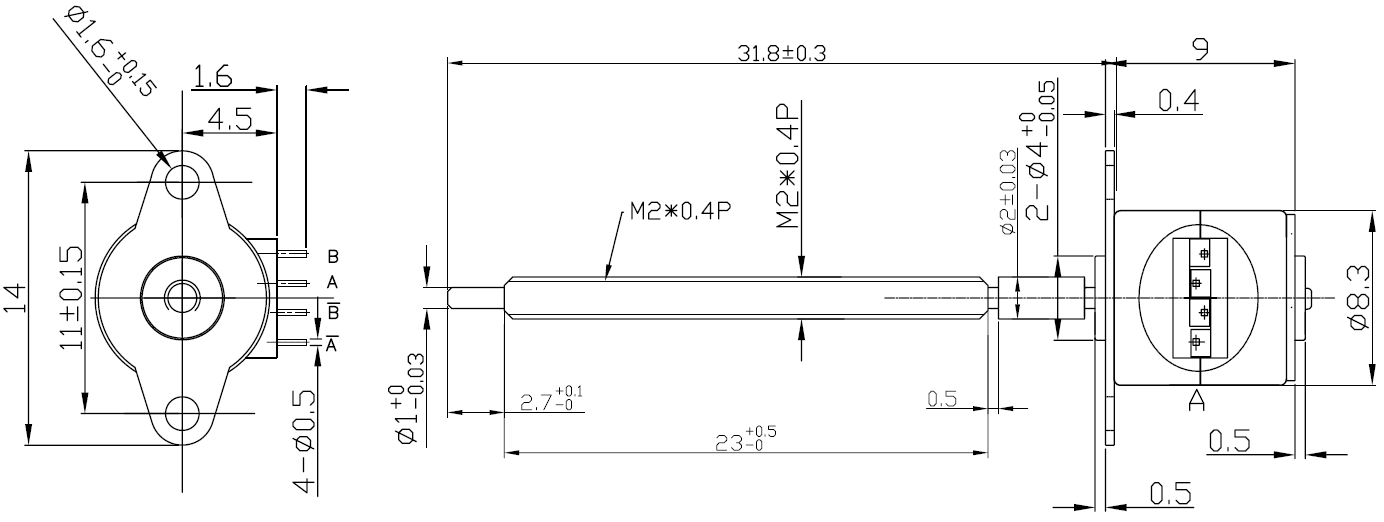

Mechanical Dimension:MM

SM08-31L M2 Lead Screw 18 Degree Linear Stepper Motor 8mm With Naked Pins

Technical Features

Model No. SM08-31L
Motor type 8mm stepper motor with lead screw
Rated voltage 3.3V
Coil resistance 6Ω/phase
Step angle 18°/step
Pull out torque 3 g*cm at 500 PPS
Lead screw type M2 * 0.4P
Lead screw length 31.8mm
Travel per step 0.02mm/step


8mm micro stepper motor is a small type motor for precision instrument.

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device

Specifications

Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

SM08-31L M2 Lead Screw 18 Degree Linear Stepper Motor 8mm With Naked Pins

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

SM08-31L M2 Lead Screw 18 Degree Linear Stepper Motor 8mm With Naked Pins

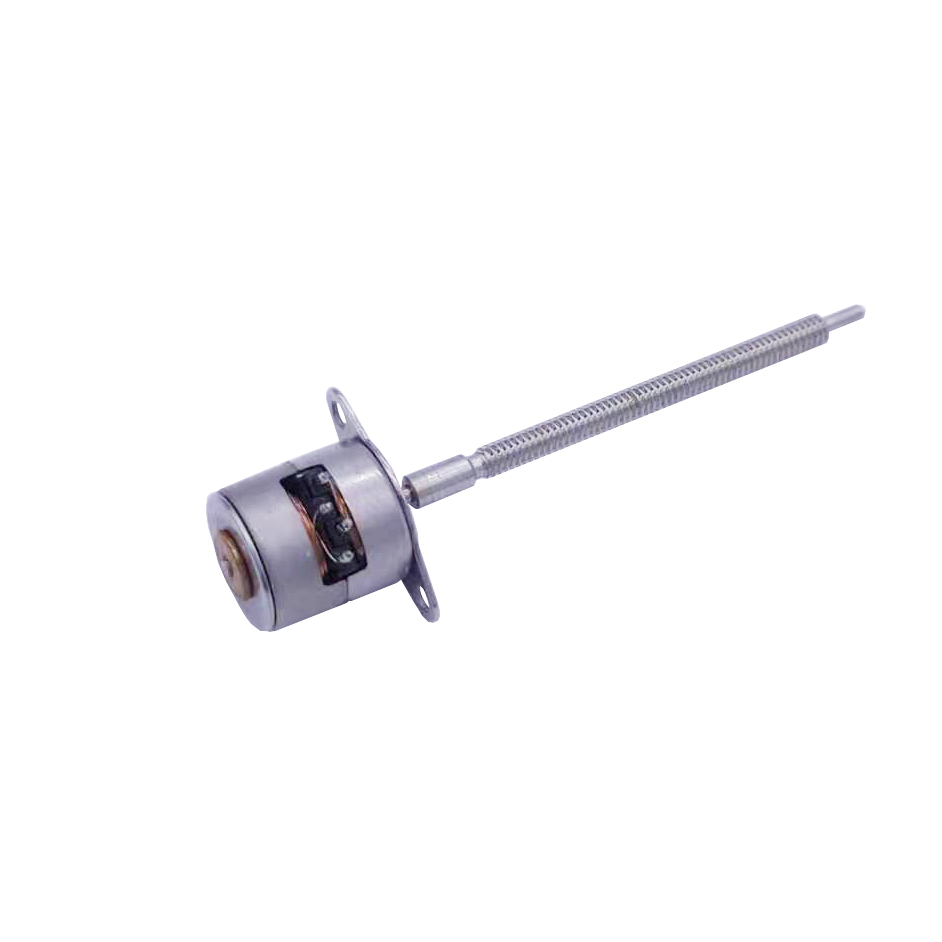

Product Detail Presentation

SM08-31L M2 Lead Screw 18 Degree Linear Stepper Motor 8mm With Naked Pins
SM08-31L M2 Lead Screw 18 Degree Linear Stepper Motor 8mm With Naked Pins
