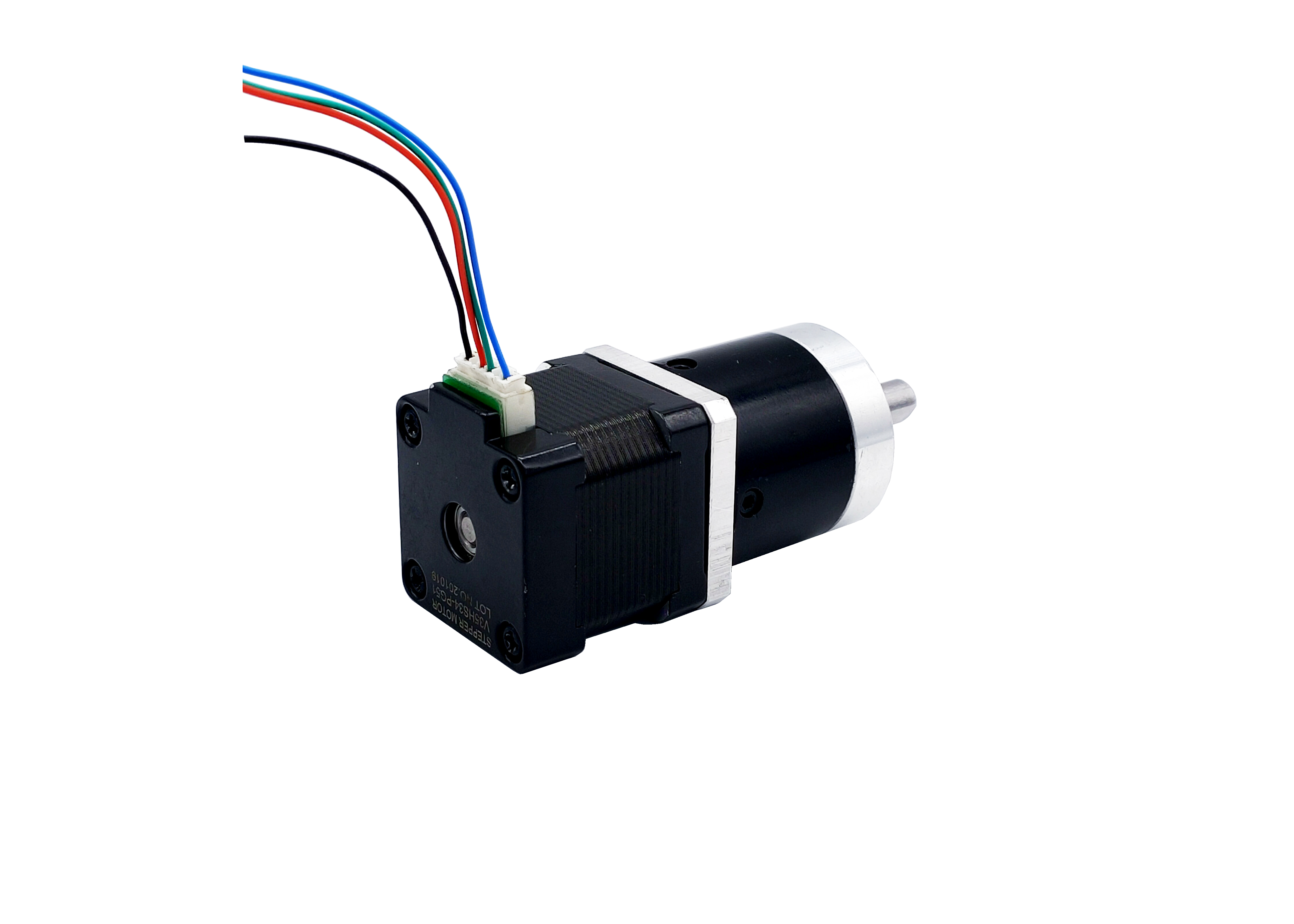

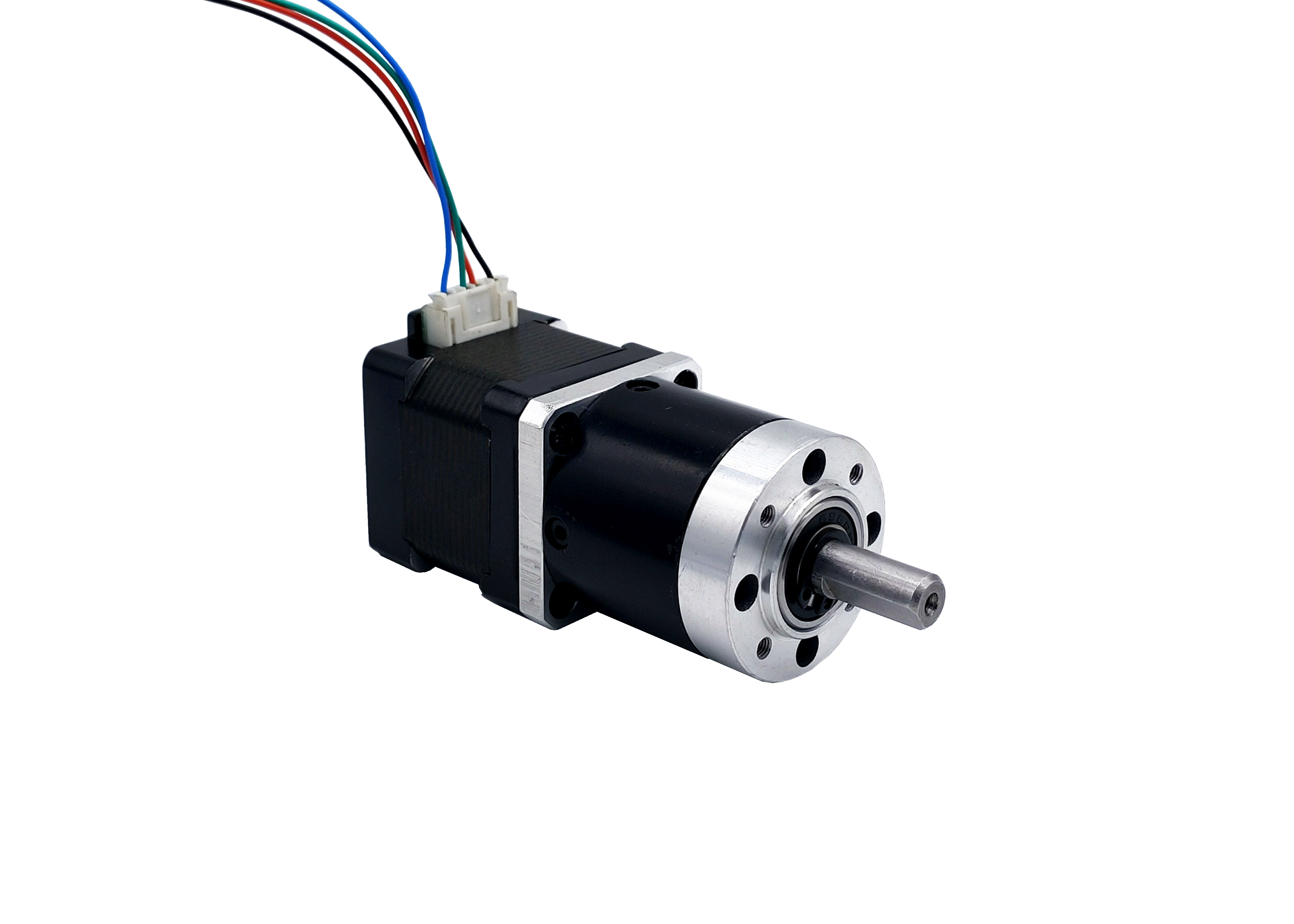

NEMA 14 35mm High Torque Hybrid Stepping Planetary Gearbox Motor 5V 12V China Stepper Motor
High torque geared motor gearbox DC 12V motor ,Voltage: DC12V; Feature:-The motor is Gear DC motor with micro-turbine worm, you can change the wiring-connection to change motor rotation. Worm geared motor with self-lock, that is, in the case of motor without electric, the output axis is fixed, self-lock.
No-load speed choice : 2rpm / 3rpm / 5rpm / 6rpm / 10rpm / 20 rpm / 30rpm / 40rpm / 62rpm / 100rpm(use M3 scews to mount)
Suitable for: Widely used in windows,remote control curtains, miniature a door opener, barbecue grills, ovens, washers, waste disposal machines, coffee machines, printing machines, household appliances, miniature winch and other occasions.
The gearbox output shaft direction of the motor shaft is arranged vertically. The entire body of the motor output shaft relative to the general direction of gear motor short, Widely adapted to some of the installation dimensions of this aspect is required.
WARRANTY: In there,you are backed by our Performance Assurance. If you have any issues with your product,simply contact customer service for troubleshooting help, parts, replacement, or refund.

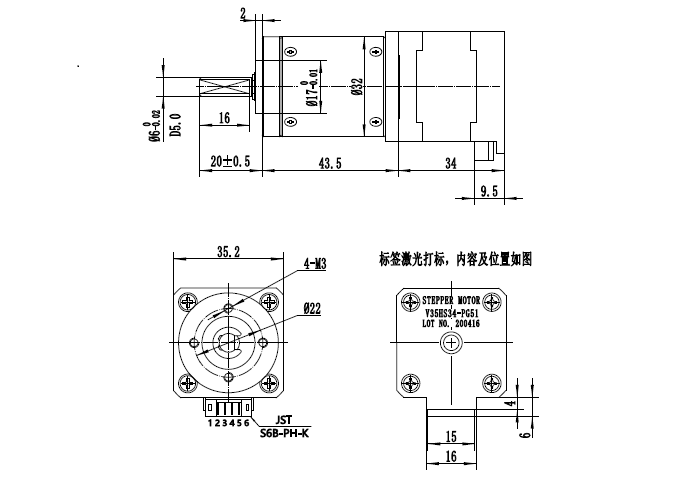

Mechanical Dimension:MM
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| Product Name | Geared stepper motor |
| Model | 35BYGH34-51PG |
| Motor Parameters | |
| Rated Voltage | 5V~12V |
| NO.OF PHASES | 2 PHASES |
| Gear Box Parameters | |
| Peduction Rated | 1:51 |
| STEP ANGLE | 18°/STEP |
| COIL RESISTANCE | 10Ω±10% |
| PHASE INDUCTANCE | 12±20% mH |
| HOLDING TORQUE | 1.2Kg.cm |
| INSULATION CLASS | B |
| WEIGHE | 0.25kg |
| Other Ratio for Choice | 28 32 49 74 101 153 218 290 505 634 |
| OEM & ODM SERVICE | AVAILABLE |
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Shaft Type
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
-
Round Type : DIA3mm. 4mm. 5mm
-
D-cut Type: DIA3-D2.5 DIA4-D3 etc
-
Screw Type: M3 M4 M5 Serial
-
Trape Type
-
I-cut Type: DIA3-I2 DIA4-I3
-
Other Type: Shaft with a hole etc
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.
Product Detail Presentation
Product Tags:
|
|

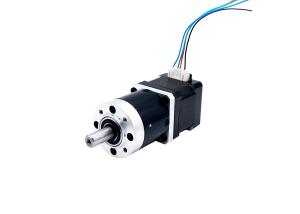

NEMA 14 High Torque Hybrid Stepping Planetary Gearbox Motor 5V 12V 35mm Images
|
