VSM08 Linear Stepper Motor With M2 Lead Screw 18 Degree Step Angle

Name: VSM08 Linear Stepper Motor With M2 Lead Screw 18 Degree Step Angle
Brand: VIC-TECH
Price: 2 USD

Quality VSM08 Linear Stepper Motor With M2 Lead Screw 18 Degree Step Angle wholesale

Brand Name : VIC-TECH

Model Number : VSM08-

Certification : RoHS

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1Unit

Price : $2~$7/Unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000000 Units/year

Delivery Time : 15-30 work days

Packaging Details : Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit

Step Angle(degrees) : 18 degree

Phase : 2

Voltage : 3.3 V

Resistance : 16.3 Ω±10%

Rotation : CW/CCW

Type : Permanent Magnet

Motor type : linear stepper motor

Lead screw : M2*0.4P

Contact Now

VSM08 linear stepper motor with M2 lead screw 18 degree step angle customized screw length

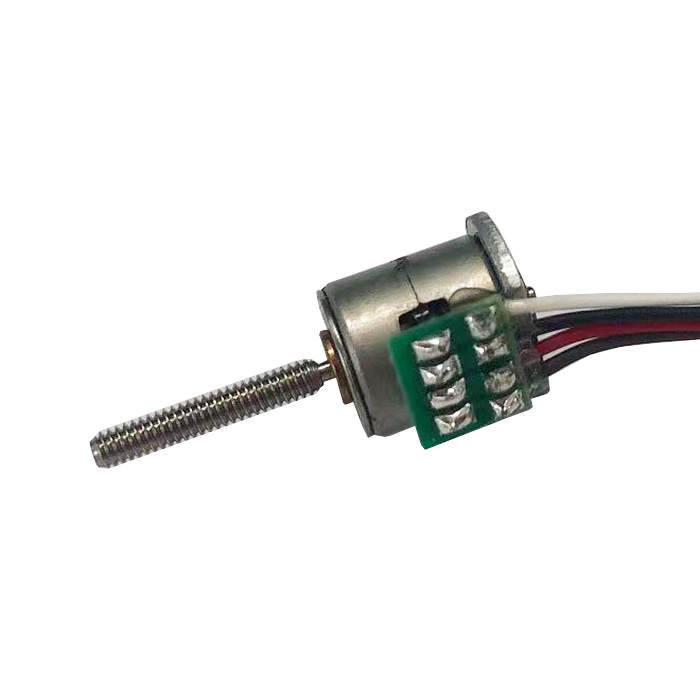

This is a 8mm linear stepper motor with a M2 lead screw.

This is customized product.

There are two M1.4 screw holes at the bottom, for standard product it’s on top.

These screw holes can be used to fix the motor.

Lead screw is regular M2*0.4P triangle lead screw, and pitch is 0.4mm.

We can replace the lead screw into others if customers require.

The lead screw length is also customizable.

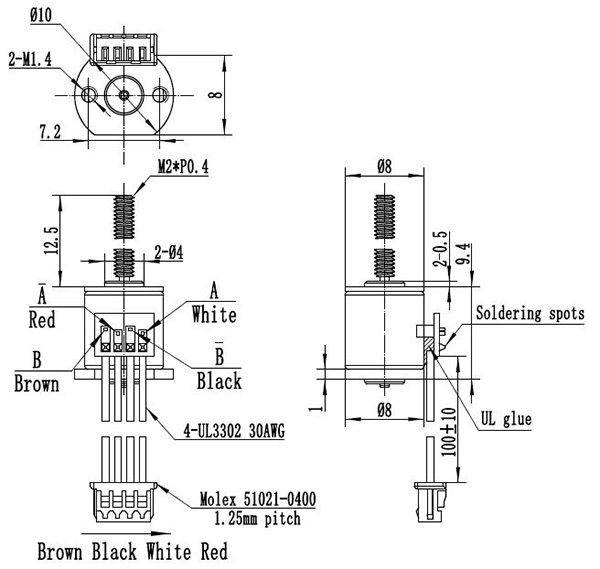

Mechanical Dimension:MM

Specification:

Model No.	VSM08-
Motor type	Permanent magnet linear stepper motor
Motor diameter	8mm
Step angle	18°/step
Lead screw type	M2*0.4P
Step length	0.02mm/step
Coil resistance	16.3Ω/phase
Lead screw length	12.5mm

8mm micro stepper motor is a small type motor for precision instrument.

Typical Applications

Intelligent Security Products
Camera Lenses
Door Locks
Wearable device

Competitive Advantage

High quality and the best price.
Fast deliver,storage company and rich inventory
Near Shanghai port, the traffic is very convenient.

Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

VSM08 Linear Stepper Motor With M2 Lead Screw 18 Degree Step Angle

Product Detail Presentation
