35C0301 NEMA14 linear hybrid stepper motor with 0.6096 mm pitch high precision lead screw
This is a 35mm size (NEMA14) hybrid stepper motor with lead screw and nut. The lead screw is 0.6096 mm pitch single start, 0.003mm step length. (Step length means linear distance nut travels when the motor takes one full step).
Screw lead is related to motor’s linear speed, and nut’s thrust.
If customers require higher speed on the nut, we can replace with longer screw lead. But motor’s thrust/pushing force will be lower.
It depends on customers want more thrust or higher speed.
Motor’s height is 33mm, and it’s related to motor’s torque, with bigger height, motor’s torque is higher.
Please confirm your required linear speed and thrust, before you order motor samples, we will recommend suitable motors with suitable lead screw type based on your requirement.

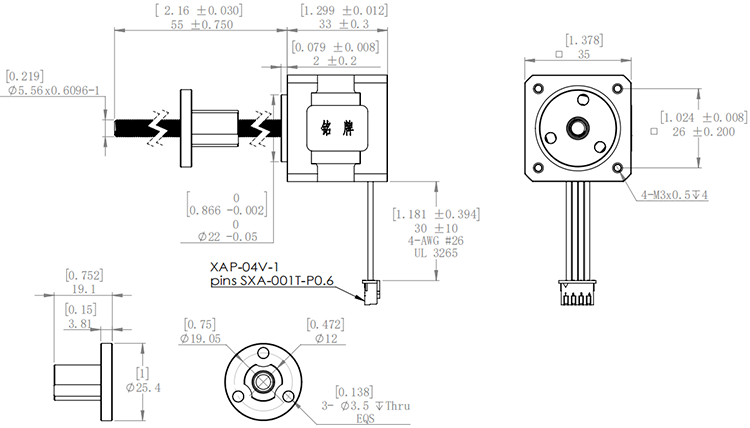

Design Layout (Unit:mm)
Parameter sheet:
| Motor type | Hybrid stepper motor |
| Motor size | 35mm (NEMA14) |
| Step angle | 1.8°/step |
| Step length | 0.003mm/step |
| Phase No. | 2 phases |
| Phase resistance | 1.8Ω±10% |
| Lead screw type | P0.6096*1N |
| Lead scew length | 55mm (Adjustable) |
Competitive Advantage
-
High quality and the best price.
-
Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.
About hybrid stepper motor:
Hybrid stepper motors are in general square shape, and a stepper motor can be identified by its unique outer shape.
A hybrid stepper motor has 1.8°step angle(200 step/revolution) or 0.9°step angle (400 steps/revolution). Step angle is determined by tooth number on rotor’s laminations.
There are to ways to name a hybrid stepper motor:
By Metric unit (unit: mm) or by Imperial unit (unit: inch)
For example, a 42mm motor = a 1.7 inch stepper motor.
So a 42mm motor can also be called as NEMA 17 motor.
Explanation of hybrid stepper motor’s name:
For example, 42HS40 stepper motor:
42 means the size is 42mm, so it’s a NEMA17 motor.
HS means Hybrid Stepper motor.
40 means the height is 40mm motor.
We have different height for customers to choose, with bigger height, a motor will have higher torque, bigger weight, and higher price.

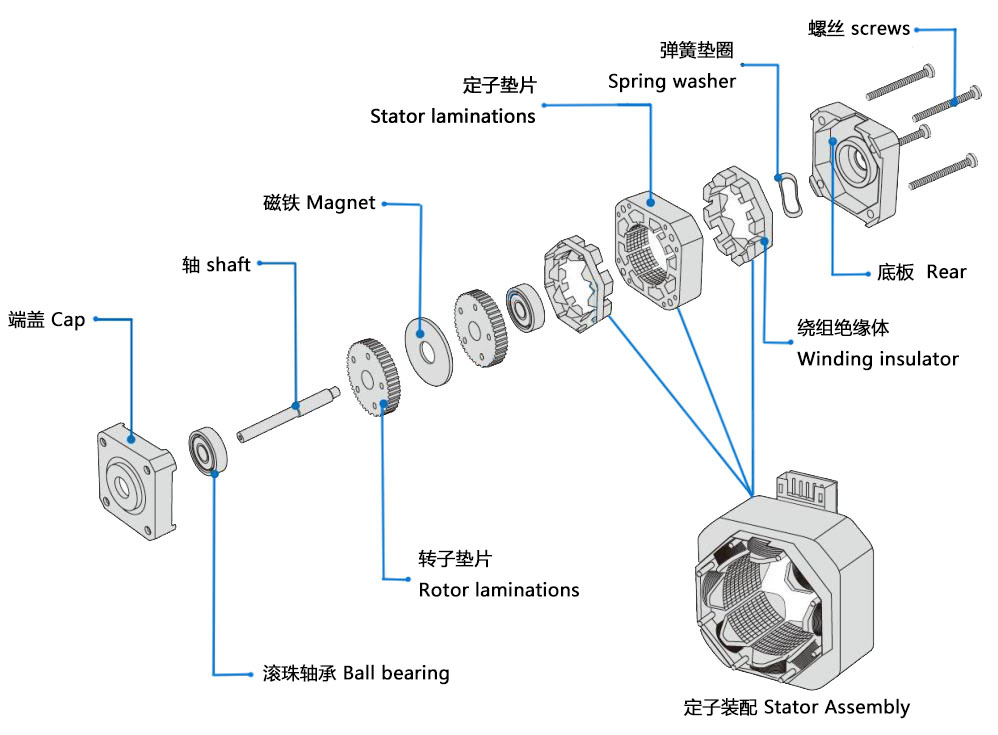

Here is internal structure of a regular hybrid stepper motor.
