High Torque 35mm Micro Stepper Motor For 3D Printer 35mm Motor Size 4 Phases

Product Categories

Changzhou Vic-Tech Motor Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

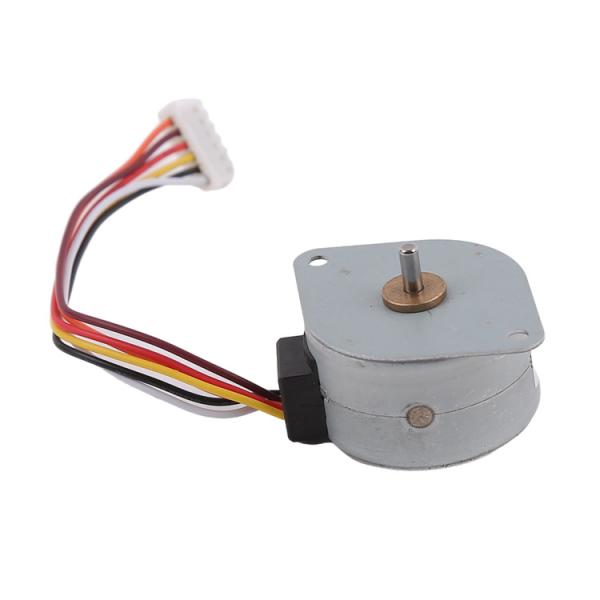

High Torque 35mm Micro Stepper Motor For 3D Printer 35mm Motor Size 4 Phases

Name: High Torque 35mm Micro Stepper Motor For 3D Printer 35mm Motor Size 4 Phases
Brand: VIC-TECH
Price: 2 USD

Quality High Torque 35mm Micro Stepper Motor For 3D Printer 35mm Motor Size 4 Phases wholesale

Brand Name : VIC-TECH

Model Number : SM35-048

Certification : RoHS

Place of Origin : China

MOQ : 1Unit

Price : $2~5/unit

Payment Terms : MoneyGram, Western Union,Credit Card,T/T, L/C

Supply Ability : 100000\ Units/year

Delivery Time : 10~30 days after receiving sample payment

Packaging Details : The product is packed with pearl cotton, and the outside is in a carton.

Model No. : SM35-048

Motor type : Micro stepper motor

Step angle : 7.5±7%

Motor size : 35mm

No. of phases : 4 phases

Current Per phase : 0.5A

Minimum order quantity : 1unit

Contact Now

High Torque Micro 35mm Stepper Motor For 3D Printer 35mm Motor Size 4 Phases

Description

There are two winding methods for stepper motors: bipolar and unipolar.
1.Bipolar Motors
Our bipolar motors generally have only two phases, phase A and phase B, and each phase has two outgoing wires, which are separate winding. There is no connection between the two phases. Bipolar motors have 4 outgoing wires.
2.Unipolar motors
Our unipolar motors generally have four phases. On the basis of two phases of bipolar motors, two common lines are added.
If common wires are connected together, the outgoing wires are 5 wires.
If common wires are not connected together, the outgoing wires are 6 wires.
An unipolar motor has 5 or 6 outgoing lines.

Parameters

Voltage	8DV DC
No.of Phase	4 Phase
Step Angle	7.5°±7%
Winding Resistance(25℃)	16Ω±10%
Current phase	0.5A
Detent torque	≤110g.cm
Max Pull-in Rate	400PPS
Holding Torque	450g.cm
Winding temperature	≤85K
Didlectric Strength	600 VAC 1SEC 1mA

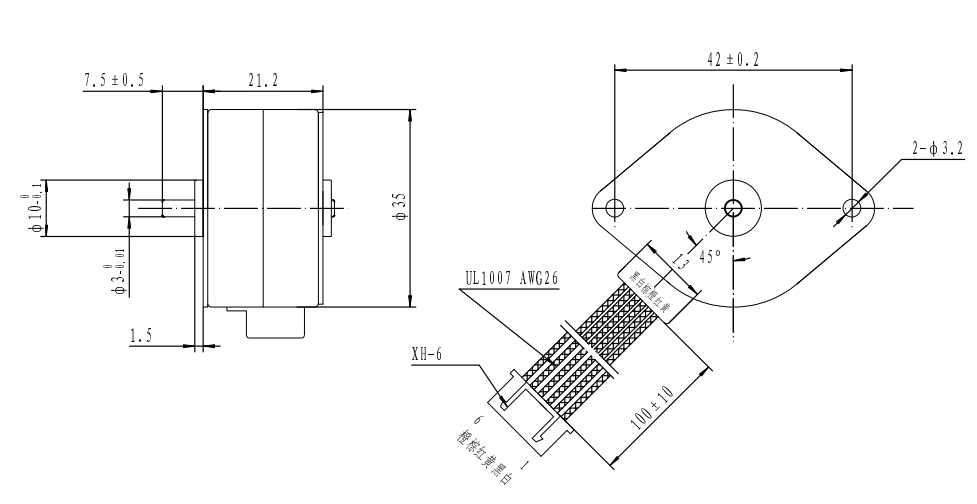

Design Drawing

High Torque 35mm Micro Stepper Motor For 3D Printer 35mm Motor Size 4 Phases

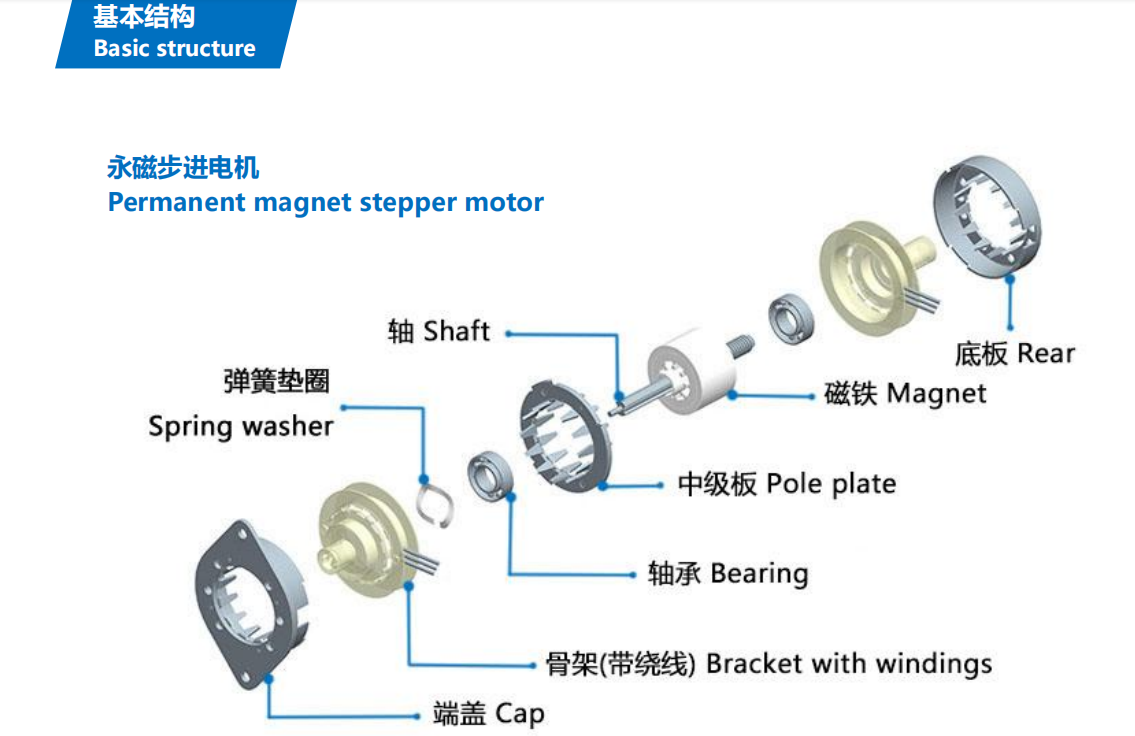

About the basic structure of PM stepper motor

Features & Advantage

1. High precision positioning
Since steppers move in precise repeatable steps, they excel in applications requiring precise
positioning, by the number of steps the motor moves
2. High Precision speed control
Precise increments of movement also allow for excellent control of rotational speed for process
automation and robotics. The rotational speed is determined by the frequency of the pulses.
3. Pause and holding function
With control of the drive, the motor has lock function (there is current through motor windings, but
the motor does not rotate), and there is still a holding torque output.
4. Long life & low electromagnetic interference
The stepper motor has no brushes, and does not need to be commutated by brushes like a brushed
DC motor. There is no friction of the brushes, which increases the service life, has no electric sparks, and reduces electromagnetic interference.

Application of PM stepper motor

Printer
Textile machinery
Industrial control
Air conditioning

Working principle of stepper motor

The drive of the stepper motor is controlled by software. When the motor needs to rotate, drive will
apply the stepper motor pulses. These pulses energize stepper motor's in a specified order, thereby
causing the motor's rotor to rotate in a specified direction (clockwise or counter clockwise). So as to
realize proper rotation of the motor. Each time the motor receives a pulse from the driver, it will rotate by a step angle (with full-step drive), and the rotation angle of the motor is determined by the number of driven pulses and step angle.

Lead time and packaging information

Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)

Lead time for building a new mold: generally about 45 days

Lead time for mass production: based on order quantity

Packaging:
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets

Payment method and payment terms

For samples, in general we accept Paypal or alibaba.
For mass production, we accept T/T payment.

For samples, we collect full payment before production.
For mass production, we can accept 50% pre-payment before production, and collect the rest 50% payment before shipment.
After we cooperate order more than 6 times, we could negotiate other payment terms such as A/S (after sight)
