18 ° step angle 10mm diameter micro stepper motor with bracket slider thrust 120g
This is a 10mm diameter linear running stepper motor, including a screw and a slider.
Motor resistance: 10 ohms per phase,
Suggested voltage: 3.3-5V DC
Step angle of 18 °/step, with a stroke of 0.02mm per step
The maximum effective stroke of the motor is 39mm
The slider can move linearly. The action of the motor is completely controlled by the driver.
This product can be used in conjunction with precision instruments or electronic products.

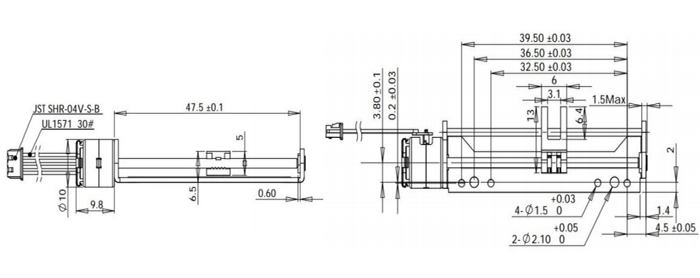

Mechanical Dimension:MM
Technical Features
It converts the rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc.
according to customer requirements.
The output part is linear.
Typical Applications
Specifications
| Model No. | VSM10198 |
| Motor diameter | 10mm |
| Resistance | 10Ω/phase |
| Rated voltage | 3.3-5V DC |
| No. of phases | 2 phases |
| Step angle | 18°/Step |
| Lead screw | M2*P0.4 |
| Travel per step | 0.02mm |
| Effective stroke | 39mm |
| Max starting frequency | 1000 HZ( min) |
| Max reponse frequency | 1200Hz(Min) |
| Pull-out thrust | 120 g Min(500PPS) |
Competitive Advantage
-
High quality and the best price.
-
Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.

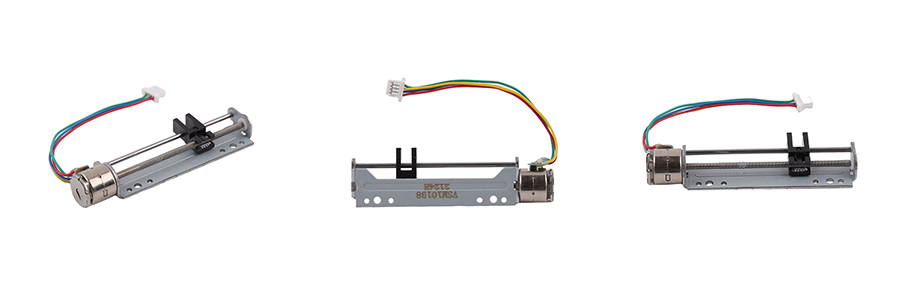

Product Detail Presentation
